Compact Connector Concept - CC Concept

The CC Concept is the solution for

  • Directly connect two fittings
  • Optimize space
  • Specifically designed for "compressor rooms"

Presentation of the CC Concept in video

Straightforward, fast connection methods

Connection with a flange

1.

Connection with a flange

  • ANSI/ASME general-purpose flange
  • Ideal for connecting a system to a compressor, a dryer or to an existing system through the standard ANSI flange
Connection with a clamp

2.

Connection with a clamp

  • Quickly connect two fittings with a clamp instead of cutting the pipe or installing a flange
  • Design allows for easy installation and elimination of assembly errors
Connection valve

3.

Connection valve

Support and documents

You will find below all our documentation related to the PREVOST PIPING SYSTEM air network range.

 General documentation

 Assembly instructions

 Technical information

 Certifications

Compact Connection fittings - CC Concept

UNIONS

Connector union with 2 different diameters

Connector union with 2 different diameters

Connector union

Connector union

ELBOWS

Equal 90° elbow connector

Equal 90° elbow connector

45° elbow

45° elbow

T-PIECES

1-connector T-piece with 2 different diameters

1-connector T-piece with 2 different diameters

2-connector T-piece

2-connector T-piece

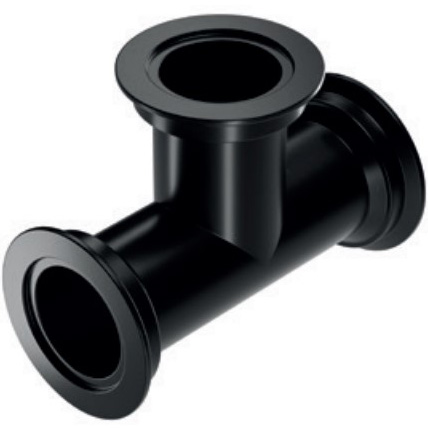

3-connector T-piece

3-connector T-piece

CROSS FITTING

4-connector cross-piece

4-connector cross-piece

CONNECTING PARTS

Clamp

Clamp

Flange

Flange

ALUMINIUM VALVES
Ø 2 1/2”

1-connector valve

1-connector valve

 2-connector valve

2-connector valve

ACCESSORIES

Female threaded body

Female threaded body

 Plug

Plug

O-ring seal

O-ring seal

 Male threaded body

Male threaded body

Valve

Valve

 Bolts/nuts

Bolts/nuts
