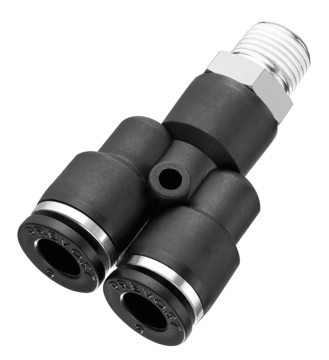

1683_RPY_MR

Y male - Metric tube to male BSPT - RPY MR

Max. output pressure
145 psi
Temperature
32°F to 140°F

Plus de références

Reference
Net weight (kg)
Male thread
RPY MR0400
RPY MR0401
RPY MR0600
RPY MR0601
RPY MR0602
RPY MR0603
RPY MR0800
RPY MR0801
RPY MR0802
RPY MR0803
RPY MR1000
RPY MR1001
RPY MR1002
RPY MR1003
RPY MR1201
RPY MR1202
RPY MR1203
RPY MR1402
RPY MR1403
RPY MR1602
RPY MR1603

Dimensions

RPY_MR
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPY MR0400
1.63
0.79
0.39
1.34
RPY MR0401
1.69
0.79
0.55
1.34
RPY MR0600
1.73
1.01
0.47
1.44
RPY MR0601
1.79
1.01
0.55
1.44
RPY MR0602
1.89
1.01
0.67
1.46
RPY MR0603
1.99
1.01
0.83
1.48
RPY MR0800
1.74
1.09
0.55
1.45
RPY MR0801
1.8
1.09
0.55
1.45
RPY MR0802
1.9
1.09
0.67
1.47
RPY MR0803
2
1.09
0.83
1.49
RPY MR1000
2.21
1.32
0.67
1.91
RPY MR1001
2.27
1.32
0.67
1.91
RPY MR1002
2.35
1.28
0.67
1.91
RPY MR1003
2.44
1.32
0.83
1.93
RPY MR1201
2.39
1.56
0.75
2.04
RPY MR1202
2.49
1.56
0.75
2.06
RPY MR1203
2.57
1.56
0.83
2.06
RPY MR1402
2.55
1.79
0.87
2.12
RPY MR1403
2.63
1.79
0.87
2.12
RPY MR1602
2.62
1.87
0.94
2.19
RPY MR1603
2.7
1.87
0.94
2.19
Reference Net weight (kg) Male thread 3D
RPY MR0400 0,011 Kg R1/8
RPY MR0401 0,015 Kg R1/4
RPY MR0600 0,015 Kg R1/8
RPY MR0601 0,018 Kg R1/4
RPY MR0602 0,024 Kg R3/8
RPY MR0603 0,037 Kg R1/2
RPY MR0800 0,018 Kg R1/8
RPY MR0801 0,02 Kg R1/4
RPY MR0802 0,025 Kg R3/8
RPY MR0803 0,038 Kg R1/2
RPY MR1000 0,029 Kg R1/8
RPY MR1001 0,031 Kg R1/4
RPY MR1002 0,034 Kg R3/8
RPY MR1003 0,045 Kg R1/2
RPY MR1201 0,043 Kg R1/4
RPY MR1202 0,046 Kg R3/8
RPY MR1203 0,054 Kg R1/2
RPY MR1402 0,059 Kg R3/8
RPY MR1403 0,066 Kg R1/2
RPY MR1602 0,062 Kg R3/8
RPY MR1603 0,068 Kg R1/2

Dimensions

Reference A inch B inch C inch D inch
RPY MR0400 1.63 0.79 0.39 1.34
RPY MR0401 1.69 0.79 0.55 1.34
RPY MR0600 1.73 1.01 0.47 1.44
RPY MR0601 1.79 1.01 0.55 1.44
RPY MR0602 1.89 1.01 0.67 1.46
RPY MR0603 1.99 1.01 0.83 1.48
RPY MR0800 1.74 1.09 0.55 1.45
RPY MR0801 1.8 1.09 0.55 1.45
RPY MR0802 1.9 1.09 0.67 1.47
RPY MR0803 2 1.09 0.83 1.49
RPY MR1000 2.21 1.32 0.67 1.91
RPY MR1001 2.27 1.32 0.67 1.91
RPY MR1002 2.35 1.28 0.67 1.91
RPY MR1003 2.44 1.32 0.83 1.93
RPY MR1201 2.39 1.56 0.75 2.04
RPY MR1202 2.49 1.56 0.75 2.06
RPY MR1203 2.57 1.56 0.83 2.06
RPY MR1402 2.55 1.79 0.87 2.12
RPY MR1403 2.63 1.79 0.87 2.12
RPY MR1602 2.62 1.87 0.94 2.19
RPY MR1603 2.7 1.87 0.94 2.19
RPY_MR
