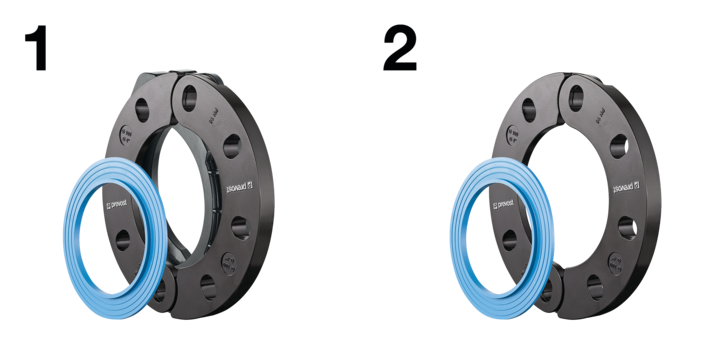

PPS1_CC160_FL100
3D

PPS1 CC CONCEPT - Connecting parts

Max. output pressure
232 psi
Temperature
-4°F to 176°F

Plus de références

Reference
Net weight (kg)
For pipe OD
Image Number
PPS1 CC50
PPS1 CC63
PPS1 CC80
PPS1 CC100
PPS1 CC160
PPS1 FL50
PPS1 FL63
PPS1 FL80
PPS1 FL100
PPS1 FL160

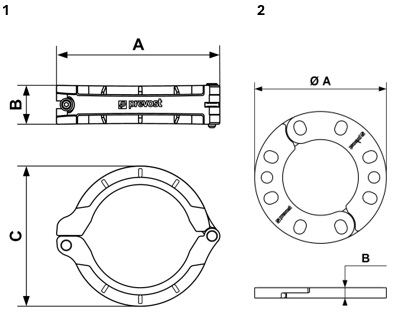

Dimensions

PPS1_CC PPS1_FL
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS1 CC50
5.28
1.38
4.29
PPS1 CC63
6.02
1.5
5.08
PPS1 CC80
7.13
1.89
5.94
PPS1 CC100
8.31
1.97
7.09
PPS1 CC160
PPS1 FL50
6.5
0.63
PPS1 FL63
7.28
0.63
PPS1 FL80
7.87
0.71
PPS1 FL100
9.02
0.71
PPS1 FL160
Reference Net weight (kg) For pipe OD Image Number 3D
PPS1 CC50 0.403 Kg 2" 1. 3D
PPS1 CC63 0.514 Kg 2 1/2" 1. 3D
PPS1 CC80 0.893 Kg 3" 1. 3D
PPS1 CC100 1.240 Kg 4" 1. 3D
PPS1 CC160 3.150 Kg 6" 1. 3D
PPS1 FL50 0.693 Kg 2" 2. 3D
PPS1 FL63 0.792 Kg 2 1/2" 2. 3D
PPS1 FL80 0.959 Kg 3" 2. 3D
PPS1 FL100 1.156 Kg 4" 2. 3D
PPS1 FL160 2.000 Kg 6" 2. 3D

Dimensions

Reference A inch B inch C inch
PPS1 CC50 5.28 1.38 4.29
PPS1 CC63 6.02 1.5 5.08
PPS1 CC80 7.13 1.89 5.94
PPS1 CC100 8.31 1.97 7.09
PPS1 CC160
PPS1 FL50 6.5 0.63
PPS1 FL63 7.28 0.63
PPS1 FL80 7.87 0.71
PPS1 FL100 9.02 0.71
PPS1 FL160
PPS1_CC PPS1_FL
