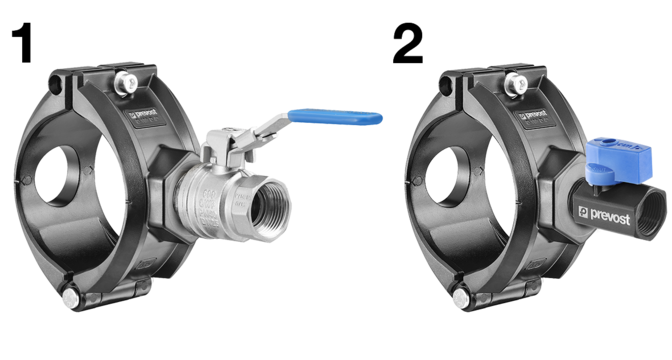

PPS1 BFV - Tapping flange BFT with valve

PPS1_BFV100 34
PPS1_BFV100 34
Net weight (kg)
1,24
For pipe OD =
4" inch
Max. output pressure
232.00
Female thread
G1/2
Temperature
-4.00°F to 176.00°F
Numéro d'image
2.

Description

Reference
Net weight (kg)
For pipe OD =
Max. output pressure
Female thread
Temperature
Numéro d'image
PPS1 BFV10012
PPS1 BFV100203
PPS1 BFV100205
PPS1 BFV2512
PPS1 BFV25203
PPS1 BFV3212
PPS1 BFV32203
PPS1 BFV4012
PPS1 BFV40203
PPS1 BFV40205
PPS1 BFV4034
PPS1 BFV5012
PPS1 BFV50203
PPS1 BFV50205
PPS1 BFV5034
PPS1 BFV6312
PPS1 BFV63203
PPS1 BFV63205
PPS1 BFV6334
PPS1 BFV8012
PPS1 BFV80203
PPS1 BFV80205

Dimensions

PPS1_BFV
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS1 BFV10012
6.26
8.85
PPS1 BFV100203
6.26
8.85
PPS1 BFV100205
6.26
10.04
PPS1 BFV2512
2.56
5.71
PPS1 BFV25203
2.56
5.71
PPS1 BFV3212
2.56
5.71
PPS1 BFV32203
2.56
5.71
PPS1 BFV4012
3.7
6.69
PPS1 BFV40203
3.7
6.69
PPS1 BFV40205
3.7
8.27
PPS1 BFV4034
3.7
8.27
PPS1 BFV5012
3.7
6.69
PPS1 BFV50203
3.7
6.69
PPS1 BFV50205
3.7
8.27
PPS1 BFV5034
3.7
8.27
PPS1 BFV6312
5.39
8.27
PPS1 BFV63203
5.39
8.27
PPS1 BFV63205
5.39
9.65
PPS1 BFV6334
5.39
9.65
PPS1 BFV8012
5.39
8.27
PPS1 BFV80203
5.39
8.27
PPS1 BFV80205
5.39
9.65

Description

Reference Net weight (kg) For pipe OD = Max. output pressure Female thread Temperature Numéro d'image 3D
PPS1 BFV10012 1,24 4" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV100203 1,247 4" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV100205 1,55 4" inch 232.00 NPT1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV2512 0,421 1" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV25203 0,435 1" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV3212 0,77 1 1/4" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV32203 0,418 1 1/4" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV4012 0,737 1 1/2" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV40203 0,745 1 1/2" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV40205 1,1 1 1/2" inch 232.00 NPT1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV4034 1,044 1 1/2" inch 232.00 G1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV5012 0,675 2" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV50203 0,686 2" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV50205 1,4 2" inch 232.00 NPT1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV5034 0,985 2" inch 232.00 G1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV6312 1,21 2 1/2" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV63203 1,22 2 1/2" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV63205 1,561 2 1/2" inch 232.00 NPT1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV6334 1,498 2 1/2" inch 232.00 G1 -4.00°F to 176.00°F 1. 3D
PPS1 BFV8012 1,1 3" inch 232.00 G1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV80203 1,12 3" inch 232.00 NPT1/2 -4.00°F to 176.00°F 2. 3D
PPS1 BFV80205 1,456 3" inch 232.00 NPT1 -4.00°F to 176.00°F 1. 3D

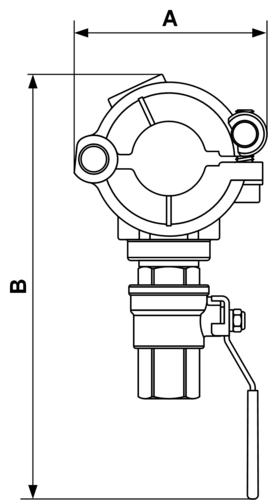

Dimensions

Reference A inch B inch
PPS1 BFV10012 6.26 8.85
PPS1 BFV100203 6.26 8.85
PPS1 BFV100205 6.26 10.04
PPS1 BFV2512 2.56 5.71
PPS1 BFV25203 2.56 5.71
PPS1 BFV3212 2.56 5.71
PPS1 BFV32203 2.56 5.71
PPS1 BFV4012 3.7 6.69
PPS1 BFV40203 3.7 6.69
PPS1 BFV40205 3.7 8.27
PPS1 BFV4034 3.7 8.27
PPS1 BFV5012 3.7 6.69
PPS1 BFV50203 3.7 6.69
PPS1 BFV50205 3.7 8.27
PPS1 BFV5034 3.7 8.27
PPS1 BFV6312 5.39 8.27
PPS1 BFV63203 5.39 8.27
PPS1 BFV63205 5.39 9.65
PPS1 BFV6334 5.39 9.65
PPS1 BFV8012 5.39 8.27
PPS1 BFV80203 5.39 8.27
PPS1 BFV80205 5.39 9.65
PPS1_BFV
