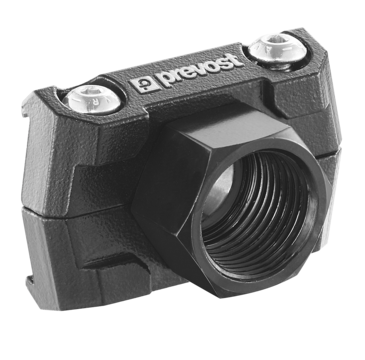

PPS SQBFT - Straight aluminum tapping flange with tapered female thread for square profile

3624_PPS SQ0BFT12-2
3624_PPS SQ0BFT12-2
Net weight (kg)
0,078
For pipe OD =
1" inch
Max. output pressure
232.00
Female thread
NPT1/2
Temperature
-4.00°F to 176.00°F

Description

Reference
Net weight (kg)
For pipe OD =
Max. output pressure
Female thread
Temperature
PPS SQBFT201
PPS SQBFT202
PPS SQBFT203

Dimensions

Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS SQBFT201
PPS SQBFT202
PPS SQBFT203

Description

Reference Net weight (kg) For pipe OD = Max. output pressure Female thread Temperature 3D
PPS SQBFT201 0,078 1" inch 232.00 NPT1/2 -4.00°F to 176.00°F
PPS SQBFT202 0,073 1" inch 232.00 3/8" NPT -4.00°F to 176.00°F 3D
PPS SQBFT203 0,068 1" inch 232.00 NPT1/4 -4.00°F to 176.00°F 3D
