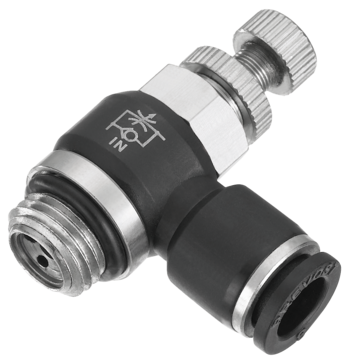

Parallel male regulator with adjusting knob - Cylinder supply - RPM IG;Male flow regulator with knob (control in) - Fractional inch tube to 10-32 UNF - RPM IG
Parallel male regulator with adjusting knob - Cylinder supply - RPM IG;Male flow regulator with knob (control in) - Fractional inch tube to 10-32 UNF - RPM IG
Net weight (kg)
0,022
Male thread
G1/8
Max. output pressure
145.00
Temperature
32.00°F to 140.00°F
Description
Reference
Net weight (kg)
Male thread
Max. output pressure
Temperature
Ø ext. (in)
For pipe OD =
RPM IG1826
RPM IG3126
RPM IG4126
RPM IG5326
RPM IG0400
RPM IG0401
RPM IG04M5
RPM IG0600
RPM IG0601
RPM IG0602
RPM IG0603
RPM IG06M5
RPM IG0800
RPM IG0801
RPM IG0802
RPM IG0803
RPM IG1000
RPM IG1001
RPM IG1002
RPM IG1003
RPM IG1201
RPM IG1202
RPM IG1203
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPM IG1826
RPM IG3126
RPM IG4126
0.89
0.16
0.04
0.36
0.5
RPM IG5326
0.78
0.16
1672.87
0.36
RPM IG0400
1.57
0.86
0.39
1.36
0.57
RPM IG0401
1.85
0.94
0.55
1.61
0.72
RPM IG04M5
1.22
0.78
0.31
1.06
0.39
RPM IG0600
1.57
0.91
0.39
1.36
0.57
RPM IG0601
1.85
1
0.55
1.61
0.72
RPM IG0602
2.32
1.07
0.75
2.07
0.87
RPM IG0603
2.48
1.19
0.94
2.17
1.08
RPM IG06M5
1.22
0.89
0.31
1.06
0.39
RPM IG0800
1.57
0.97
0.39
1.36
0.57
RPM IG0801
1.85
1.06
0.55
1.61
0.72
RPM IG0802
2.32
1.13
0.75
2.07
0.87
RPM IG0803
2.48
1.2
0.94
2.17
1.08
RPM IG1000
1.57
1.12
0.39
1.36
0.57
RPM IG1001
1.85
1.22
0.55
1.61
0.72
RPM IG1002
2.32
1.22
0.75
2.07
0.87
RPM IG1003
2.48
1.34
0.94
2.17
1.08
RPM IG1201
1.85
1.25
0.55
1.61
0.72
RPM IG1202
2.32
1.34
0.75
2.07
0.87
RPM IG1203
2.48
1.41
0.94
2.17
1.08
Description
| Reference | Net weight (kg) | Male thread | Max. output pressure | Temperature | Ø ext. (in) | For pipe OD = | 3D |
|---|---|---|---|---|---|---|---|
| RPM IG1826 | UNF 10-32 | 1/8" | 1/8 inch | ||||
| RPM IG3126 | UNF 10-32 | 3/16" | 3/16 inch | ||||
| RPM IG4126 | 0,009 | UNF10-32 | 145.00 | 32.00°F to 140.00°F | 1/4" | 1/4 inch | |
| RPM IG5326 | UNF 10-32 | 150 | 32°F to 140°F | 5/32" | 5/32 inch | ||
| RPM IG0400 | 0,02 | G1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0401 | 0,036 | G1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG04M5 | 0,01 | M5 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0600 | 0,022 | G1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0601 | 0,037 | G1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0602 | 0,072 | G3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0603 | 0,106 | G1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG06M5 | 0,011 | M5 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0800 | 0,021 | G1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0801 | 0,039 | G1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0802 | 0,072 | G3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG0803 | 0,106 | G1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1000 | 0,023 | G1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1001 | 0,041 | G1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1002 | 0,074 | G3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1003 | 0,109 | G1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1201 | 0,044 | G1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1202 | 0,077 | G3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPM IG1203 | 0,111 | G1/2 | 145.00 | 32.00°F to 140.00°F |
Dimensions
| Reference | A inch | B inch | C inch | D inch | E inch |
|---|---|---|---|---|---|
| RPM IG1826 | |||||
| RPM IG3126 | |||||
| RPM IG4126 | 0.89 | 0.16 | 0.04 | 0.36 | 0.5 |
| RPM IG5326 | 0.78 | 0.16 | 1672.87 | 0.36 | |
| RPM IG0400 | 1.57 | 0.86 | 0.39 | 1.36 | 0.57 |
| RPM IG0401 | 1.85 | 0.94 | 0.55 | 1.61 | 0.72 |
| RPM IG04M5 | 1.22 | 0.78 | 0.31 | 1.06 | 0.39 |
| RPM IG0600 | 1.57 | 0.91 | 0.39 | 1.36 | 0.57 |
| RPM IG0601 | 1.85 | 1 | 0.55 | 1.61 | 0.72 |
| RPM IG0602 | 2.32 | 1.07 | 0.75 | 2.07 | 0.87 |
| RPM IG0603 | 2.48 | 1.19 | 0.94 | 2.17 | 1.08 |
| RPM IG06M5 | 1.22 | 0.89 | 0.31 | 1.06 | 0.39 |
| RPM IG0800 | 1.57 | 0.97 | 0.39 | 1.36 | 0.57 |
| RPM IG0801 | 1.85 | 1.06 | 0.55 | 1.61 | 0.72 |
| RPM IG0802 | 2.32 | 1.13 | 0.75 | 2.07 | 0.87 |
| RPM IG0803 | 2.48 | 1.2 | 0.94 | 2.17 | 1.08 |
| RPM IG1000 | 1.57 | 1.12 | 0.39 | 1.36 | 0.57 |
| RPM IG1001 | 1.85 | 1.22 | 0.55 | 1.61 | 0.72 |
| RPM IG1002 | 2.32 | 1.22 | 0.75 | 2.07 | 0.87 |
| RPM IG1003 | 2.48 | 1.34 | 0.94 | 2.17 | 1.08 |
| RPM IG1201 | 1.85 | 1.25 | 0.55 | 1.61 | 0.72 |
| RPM IG1202 | 2.32 | 1.34 | 0.75 | 2.07 | 0.87 |
| RPM IG1203 | 2.48 | 1.41 | 0.94 | 2.17 | 1.08 |
