MFS - Replacement cartridge for MFS regular - Coalescing filter : 0,01 µm
MFS - Replacement cartridge for MFS regular - Coalescing filter : 0,01 µm
This is an essential maintenance accessory for the submicron filter. To guarantee the quality of compressed air in the network, the cartridge must be replaced at regular intervals.
Flow rate
55.00
Filtration
0.01 µm
Output pressure
51 to 290psi
Temperature
37°F to 176°F
Easy to replace

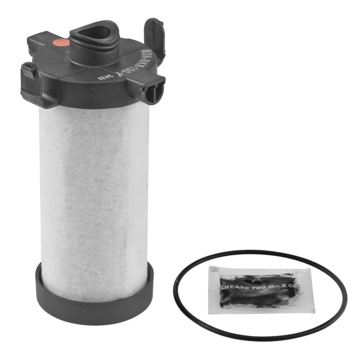

The zero-clearance design allows for simpler and quicker filter cartridge replacement in minimal space without the need for special tools. The cartridge is supplied with a seal and silicone-free grease.
High capacity of pollutants absorption
The glass microfiber media (80 times finer than cellulose fiber) ensures high filtration efficiency (1 µm) and a longer lifespan while limiting pressure losses in the network. Coalescence is ensured by the outer layer of PVC-impregnated foam, which promotes the drainage of water and oil towards the bottom of the tank.
Durability in tough conditions
Thanks to its fluted stainless steel tube structure, the cartridge can resist drops in pressure (20 bar) and high temperatures (80°C), while optimising filtration performance. It offers a maximum service life of 8,000 hours. The in-depth construction of the filter media offers improved coalescence performance.
Plus de références
Reference
Net weight (kg)
Compatibilité
MFSC 5532
MFSC 7040
MFSC 10060
MFSC 15090
MFSC 225130
MFSC 300175
MFSC 400235
MFSC 500295
MFSC 800470
MFSC 1550910

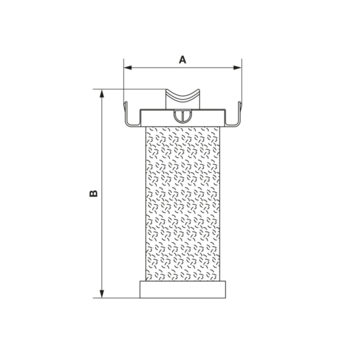

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
MFSC 5532
2.31
6.44
6.44
MFSC 7040
3.88
5.4
5.4
MFSC 10060
3.88
6.58
6.58
MFSC 15090
4.21
7.37
7.37
MFSC 225130
4.21
9.73
9.73
MFSC 300175
4.37
11.93
11.93
MFSC 400235
4.37
15.43
15.43
MFSC 500295
4.48
12.93
12.93
MFSC 800470
4.48
20.22
20.22
MFSC 1550910
4.48
20.41
20.41
| Reference | Net weight (kg) | Compatibilité | 3D |
|---|---|---|---|
| MFSC 5532 | 0.1 Kg | MFS 32 | |
| MFSC 7040 | 0.18 Kg | MFS 40 | |
| MFSC 10060 | 0.21 Kg | MFS 60 | |
| MFSC 15090 | 0.3 Kg | MFS 90 | |
| MFSC 225130 | 0.33 Kg | MFS 130 | |
| MFSC 300175 | 0.45 Kg | MFS 175 | |
| MFSC 400235 | 0.55 Kg | MFS 235 | |
| MFSC 500295 | 0.47 Kg | MFS 295 | |
| MFSC 800470 | 0.7 Kg | MFS 470 | |
| MFSC 1550910 | 0.95 Kg | MFS 910 |
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| MFSC 5532 | 2.31 | 6.44 | 6.44 |
| MFSC 7040 | 3.88 | 5.4 | 5.4 |
| MFSC 10060 | 3.88 | 6.58 | 6.58 |
| MFSC 15090 | 4.21 | 7.37 | 7.37 |
| MFSC 225130 | 4.21 | 9.73 | 9.73 |
| MFSC 300175 | 4.37 | 11.93 | 11.93 |
| MFSC 400235 | 4.37 | 15.43 | 15.43 |
| MFSC 500295 | 4.48 | 12.93 | 12.93 |
| MFSC 800470 | 4.48 | 20.22 | 20.22 |
| MFSC 1550910 | 4.48 | 20.41 | 20.41 |
