MFCC - Replacement cartridge for regular MFC - Activated carbon filtration
MFCC - Replacement cartridge for regular MFC - Activated carbon filtration
This cartridge is a maintenance accessory that installs easily into the activated carbon filter. It should be replaced at least every 6 months.
Output pressure
51 to 290psi
Temperature
41°F to 122°F
Flow rate
55
Easy to replace
The zero-clearance design allows for simpler and quicker filter cartridge replacement in minimal space without the need for special tools. The cartridge is supplied with a seal and silicone-free grease.
High capacity of pollutants absorption
Activated carbon placed between two stainless steel fluted tubes traps odours and reduces oil vapours to concentration levels of 0.003 ppm.
Durability under demanding conditions (20 bar)
Thanks to its fluted stainless steel tube structure, the cartridge resists pressure drops while optimising filtration performance.
Plus de références
Reference
Net weight (kg)
Compatible with
Flow rate
MFCC 5532
MFCC 7040
MFCC 10060
MFCC 15090
MFCC 225130
MFCC 300175
MFCC 400235
MFCC 500295
MFCC 800470
MFCC 1550910

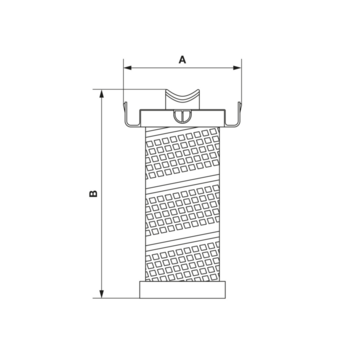

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
MFCC 5532
2.31
6.44
6.44
MFCC 7040
3.88
5.4
5.4
MFCC 10060
3.88
6.58
6.58
MFCC 15090
4.21
7.37
7.37
MFCC 225130
4.21
9.73
9.73
MFCC 300175
4.37
11.93
11.93
MFCC 400235
4.37
15.43
15.43
MFCC 500295
4.48
12.93
12.93
MFCC 800470
4.48
20.22
20.22
MFCC 1550910
4.48
20.41
20.41
| Reference | Net weight (kg) | Compatible with | Flow rate |
|---|---|---|---|
| MFCC 5532 | 0.100 Kg | MFC 32 | 32 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 7040 | 0.190 Kg | MFC 40 | 41 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 10060 | 0.220 Kg | MFC 60 | 59 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 15090 | 0.300 Kg | MFC 90 | 88 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 225130 | 0.350 Kg | MFC 130 | 132 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 300175 | 0.480 Kg | MFC 175 | 177 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 400235 | 0.580 Kg | MFC 235 | 235 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 500295 | 0.500 Kg | MFC 295 | 294 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 800470 | 0.750 Kg | MFC 470 | 471 CFM (P = 102 psi, ΔP = 1.16 psi) |
| MFCC 1550910 | 1.000 Kg | MFC 910 | 912 CFM (P = 102 psi, ΔP = 1.16 psi) |
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| MFCC 5532 | 2.31 | 6.44 | 6.44 |
| MFCC 7040 | 3.88 | 5.4 | 5.4 |
| MFCC 10060 | 3.88 | 6.58 | 6.58 |
| MFCC 15090 | 4.21 | 7.37 | 7.37 |
| MFCC 225130 | 4.21 | 9.73 | 9.73 |
| MFCC 300175 | 4.37 | 11.93 | 11.93 |
| MFCC 400235 | 4.37 | 15.43 | 15.43 |
| MFCC 500295 | 4.48 | 12.93 | 12.93 |
| MFCC 800470 | 4.48 | 20.22 | 20.22 |
| MFCC 1550910 | 4.48 | 20.41 | 20.41 |
