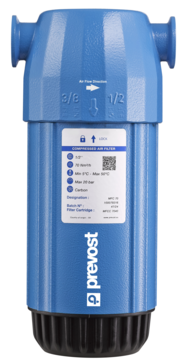

MFC basic filtration - Activated carbon filtration

Flow rate

32.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)

Max. output pressure

290 PSI

Female thread

G1/2

Temperature

41.00°F to 122.00°F

Description

Reference

Flow rate

Max. output pressure

Female thread

Temperature

MFC 55

MFC 70

MFC 100

MFC 150

MFC 225

MFC 300

MFC 400

MFC 500

MFC 800

MFC 1550

MFC 32

MFC 40

MFC 60

MFC 90

MFC 130

MFC 175

MFC 235

MFC 295

MFC 470

MFC 910

Dimensions

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

MFC 55

3.54

9.92

9.06

0.75

MFC 70

5.04

10.75

9.84

1.26

MFC 100

5.04

11.93

10.98

1.26

MFC 150

5.51

14.57

13.19

1.22

MFC 225

5.51

15.67

14.37

1.22

MFC 300

5.51

18.66

17.01

1.22

MFC 400

5.51

22.2

20.55

1.22

MFC 500

5.94

20.12

18.31

0.98

MFC 800

5.94

27.4

25.59

0.98

MFC 1550

9.44

27.83

25.98

0.98

MFC 32

3.54

9.92

9.06

0.75

MFC 40

5.04

10.75

9.84

1.26

MFC 60

5.04

11.93

10.98

1.26

MFC 90

5.51

14.57

13.19

1.22

MFC 130

5.51

15.67

14.37

1.22

MFC 175

5.51

18.66

17.01

1.22

MFC 235

5.51

22.2

20.55

1.22

MFC 295

5.94

20.12

18.31

0.98

MFC 470

5.94

27.4

25.59

0.98

MFC 910

9.44

27.83

25.98

0.98

Description

Reference	Flow rate	Max. output pressure	Female thread	Temperature
MFC 55	32.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G1/2	41.00°F to 122.00°F
MFC 70	41.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G1/2	41.00°F to 122.00°F
MFC 100	59.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G1/2	41.00°F to 122.00°F
MFC 150	88.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G3/4	41.00°F to 122.00°F
MFC 225	132.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 1	41.00°F to 122.00°F
MFC 300	177.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 1 1/2	41.00°F to 122.00°F
MFC 400	235.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 1 1/2	41.00°F to 122.00°F
MFC 500	294.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 2	41.00°F to 122.00°F
MFC 800	471.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 2	41.00°F to 122.00°F
MFC 1550	912.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	G 2 1/2	41.00°F to 122.00°F
MFC 32	32.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1/2" FNPT	41.00°F to 122.00°F
MFC 40	41.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1/2" FNPT	41.00°F to 122.00°F
MFC 60	59.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1/2" FNPT	41.00°F to 122.00°F
MFC 90	88.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	3/4" FNPT	41.00°F to 122.00°F
MFC 130	132.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1" FNPT	41.00°F to 122.00°F
MFC 175	177.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1" 1/2 FNPT	41.00°F to 122.00°F
MFC 235	235.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	1" 1/2 FNPT	41.00°F to 122.00°F
MFC 295	294.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	2" FNPT	41.00°F to 122.00°F
MFC 470	471.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	2" FNPT	41.00°F to 122.00°F
MFC 910	912.00 CFM (P = 102.00 PSI ,ΔP = 1.16 PSI)	290 PSI	2" 1/2 FNPT	41.00°F to 122.00°F

Dimensions

Reference	A inch	B inch	C inch	D inch	E inch
MFC 55	3.54	9.92	9.06	0.75	0.75
MFC 70	5.04	10.75	9.84	1.26	1.26
MFC 100	5.04	11.93	10.98	1.26	1.26
MFC 150	5.51	14.57	13.19	1.22	1.22
MFC 225	5.51	15.67	14.37	1.22	1.22
MFC 300	5.51	18.66	17.01	1.22	1.22
MFC 400	5.51	22.2	20.55	1.22	1.22
MFC 500	5.94	20.12	18.31	0.98	0.98
MFC 800	5.94	27.4	25.59	0.98	0.98
MFC 1550	9.44	27.83	25.98	0.98	0.98
MFC 32	3.54	9.92	9.06	0.75	0.75
MFC 40	5.04	10.75	9.84	1.26	1.26
MFC 60	5.04	11.93	10.98	1.26	1.26
MFC 90	5.51	14.57	13.19	1.22	1.22
MFC 130	5.51	15.67	14.37	1.22	1.22
MFC 175	5.51	18.66	17.01	1.22	1.22
MFC 235	5.51	22.2	20.55	1.22	1.22
MFC 295	5.94	20.12	18.31	0.98	0.98
MFC 470	5.94	27.4	25.59	0.98	0.98
MFC 910	9.44	27.83	25.98	0.98	0.98
