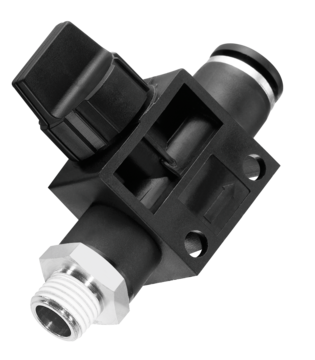

2018_RPS_TR

Male thread/tube valve three ways - Inlet male BSPT/outlet metric tube - RPS TR;Male thread/tube valve three ways - Inlet male NPT/outlet fractional inch tube - RPS TR

Max. output pressure
145 psi
Temperature
32°F to 140°F

Plus de références

Reference
Net weight (kg)
Male thread
Ø ext. (in)
Pour tube Ø ext.
RPS TR0600
RPS TR0601
RPS TR0602
RPS TR0800
RPS TR0801
RPS TR0802
RPS TR1001
RPS TR1002
RPS TR1003
RPS TR1201
RPS TR1202
RPS TR1203
RPS TR4120
RPS TR4121
RPS TR4122
RPS TR5120
RPS TR5121
RPS TR5122
RPS TR3821
RPS TR3822
RPS TR2122
RPS TR2123

Dimensions

RPS_TR_us
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPS TR0600
1.59
0.3
0.55
1
1.28
RPS TR0601
1.59
0.35
0.55
1
1.34
RPS TR0602
1.59
0.43
0.67
1
1.4
RPS TR0800
1.59
0.3
0.55
1.02
1.28
RPS TR0801
1.59
0.35
0.55
1.02
1.34
RPS TR0802
1.59
0.43
0.67
1.02
1.4
RPS TR1001
1.75
0.35
0.75
1.22
1.56
RPS TR1002
1.75
0.43
0.75
1.22
1.65
RPS TR1003
1.75
0.51
0.83
1.22
1.73
RPS TR1201
1.75
0.35
0.75
1.25
1.56
RPS TR1202
1.75
0.43
0.75
1.25
1.65
RPS TR1203
1.75
0.51
0.83
1.25
1.73
RPS TR4120
1.59
0.3
1677.72
1
RPS TR4121
1.59
0.35
1677.72
1
RPS TR4122
1.59
0.43
1680.12
1
RPS TR5120
1.59
0.3
1677.72
1.02
RPS TR5121
1.59
0.35
1677.72
1.02
RPS TR5122
1.59
0.43
1680.12
1.02
RPS TR3821
1.75
0.35
1680.12
1.22
RPS TR3822
1.75
0.43
1680.12
1.22
RPS TR2122
RPS TR2123
Reference Net weight (kg) Male thread Ø ext. (in) Pour tube Ø ext. 3D
RPS TR0600 0.080 Kg G1/8
RPS TR0601 0.080 Kg G1/4
RPS TR0602 0.080 Kg G3/8
RPS TR0800 0.080 Kg G1/8
RPS TR0801 0.080 Kg G1/4
RPS TR0802 0.080 Kg G3/8
RPS TR1001 0.080 Kg G1/4
RPS TR1002 0.080 Kg G3/8
RPS TR1003 0.080 Kg G1/2
RPS TR1201 0.080 Kg G1/4
RPS TR1202 0.080 Kg G3/8
RPS TR1203 0.080 Kg G1/2
RPS TR4120 0.080 Kg NPT1/8 1/8" inch 1/8 inch
RPS TR4121 NPT1/4 1/4" inch 1/4 inch
RPS TR4122 0,035 Kg NPT3/8 3/8" inch 3/8 inch
RPS TR5120 0.080 Kg NPT1/8 1/8" inch 1/8 inch
RPS TR5121 NPT1/4 1/4" inch 1/4 inch
RPS TR5122 0.080 Kg NPT3/8 3/8" inch 3/8 inch
RPS TR3821 0.080 Kg NPT3/8 3/8" inch 3/8 inch
RPS TR3822 0,06 Kg NPT3/8 3/8" inch 3/8 inch
RPS TR2122 0.080 Kg NPT3/8 3/8" inch 3/8 inch
RPS TR2123 0.080 Kg NPT1/2 1/2" inch 1/2 inch

Dimensions

Reference A inch B inch C inch D inch E inch
RPS TR0600 1.59 0.3 0.55 1 1.28
RPS TR0601 1.59 0.35 0.55 1 1.34
RPS TR0602 1.59 0.43 0.67 1 1.4
RPS TR0800 1.59 0.3 0.55 1.02 1.28
RPS TR0801 1.59 0.35 0.55 1.02 1.34
RPS TR0802 1.59 0.43 0.67 1.02 1.4
RPS TR1001 1.75 0.35 0.75 1.22 1.56
RPS TR1002 1.75 0.43 0.75 1.22 1.65
RPS TR1003 1.75 0.51 0.83 1.22 1.73
RPS TR1201 1.75 0.35 0.75 1.25 1.56
RPS TR1202 1.75 0.43 0.75 1.25 1.65
RPS TR1203 1.75 0.51 0.83 1.25 1.73
RPS TR4120 1.59 0.3 1677.72 1
RPS TR4121 1.59 0.35 1677.72 1
RPS TR4122 1.59 0.43 1680.12 1
RPS TR5120 1.59 0.3 1677.72 1.02
RPS TR5121 1.59 0.35 1677.72 1.02
RPS TR5122 1.59 0.43 1680.12 1.02
RPS TR3821 1.75 0.35 1680.12 1.22
RPS TR3822 1.75 0.43 1680.12 1.22
RPS TR2122
RPS TR2123
RPS_TR_us
