1681_RPT_AR

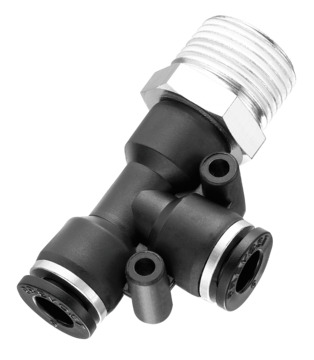

Male run tee - Metric tube to male BSPT - RPT AR

Max. output pressure
145 psi
Temperature
32°F to 140°F

Plus de références

Reference
Net weight (kg)
Male thread
RPT AR0400
RPT AR0401
RPT AR0600
RPT AR0601
RPT AR0602
RPT AR0603
RPT AR0800
RPT AR0801
RPT AR0802
RPT AR0803
RPT AR1000
RPT AR1001
RPT AR1002
RPT AR1003
RPT AR1201
RPT AR1202
RPT AR1203
RPT AR1402
RPT AR1403
RPT AR1602
RPT AR1603

Dimensions

RPT_AR
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPT AR0400
1.67
0.69
0.39
1.38
0.39
RPT AR0401
1.73
0.69
0.55
1.38
0.39
RPT AR0600
1.89
0.81
0.47
1.59
0.5
RPT AR0601
1.95
0.81
0.55
1.59
0.5
RPT AR0602
2.05
0.81
0.67
1.61
0.5
RPT AR0603
2.15
0.81
0.83
1.63
0.5
RPT AR0800
2.05
0.89
0.55
1.75
0.54
RPT AR0801
2.11
0.89
0.55
1.75
0.54
RPT AR0802
2.2
0.89
0.67
1.77
0.54
RPT AR0803
2.3
0.89
0.83
1.79
0.54
RPT AR1000
2.34
1.04
0.67
2.05
0.66
RPT AR1001
2.4
1.04
0.67
2.05
0.66
RPT AR1002
2.48
1.04
0.67
2.05
0.66
RPT AR1003
2.58
1.04
0.83
2.07
0.66
RPT AR1201
2.49
1.09
0.75
2.14
0.78
RPT AR1202
2.59
1.09
0.75
2.16
0.78
RPT AR1203
2.67
1.09
0.83
2.16
0.78
RPT AR1402
2.84
1.22
0.87
2.41
0.89
RPT AR1403
2.92
1.22
0.87
2.41
0.89
RPT AR1602
2.96
1.27
0.94
2.53
0.94
RPT AR1603
3.04
1.27
0.94
2.53
0.94
Reference Net weight (kg) Male thread 3D
RPT AR0400 0,011 Kg R1/8
RPT AR0401 0,015 Kg R1/4
RPT AR0600 0.015 Kg R1/8
RPT AR0601 0,018 Kg R1/4
RPT AR0602 0,024 Kg R3/8
RPT AR0603 0,037 Kg R1/2
RPT AR0800 0,019 Kg R1/8
RPT AR0801 0,021 Kg R1/4
RPT AR0802 0,026 Kg R3/8
RPT AR0803 0,039 Kg R1/2
RPT AR1000 0,029 Kg R1/8
RPT AR1001 0,031 Kg R1/4
RPT AR1002 0,033 Kg R3/8
RPT AR1003 0,045 Kg R1/2
RPT AR1201 0,041 Kg R1/4
RPT AR1202 0,045 Kg R3/8
RPT AR1203 0,053 Kg R1/2
RPT AR1402 0,06 Kg R3/8
RPT AR1403 0,068 Kg R1/2
RPT AR1602 0,065 Kg R3/8
RPT AR1603 0,07 Kg R1/2

Dimensions

Reference A inch B inch C inch D inch E inch
RPT AR0400 1.67 0.69 0.39 1.38 0.39
RPT AR0401 1.73 0.69 0.55 1.38 0.39
RPT AR0600 1.89 0.81 0.47 1.59 0.5
RPT AR0601 1.95 0.81 0.55 1.59 0.5
RPT AR0602 2.05 0.81 0.67 1.61 0.5
RPT AR0603 2.15 0.81 0.83 1.63 0.5
RPT AR0800 2.05 0.89 0.55 1.75 0.54
RPT AR0801 2.11 0.89 0.55 1.75 0.54
RPT AR0802 2.2 0.89 0.67 1.77 0.54
RPT AR0803 2.3 0.89 0.83 1.79 0.54
RPT AR1000 2.34 1.04 0.67 2.05 0.66
RPT AR1001 2.4 1.04 0.67 2.05 0.66
RPT AR1002 2.48 1.04 0.67 2.05 0.66
RPT AR1003 2.58 1.04 0.83 2.07 0.66
RPT AR1201 2.49 1.09 0.75 2.14 0.78
RPT AR1202 2.59 1.09 0.75 2.16 0.78
RPT AR1203 2.67 1.09 0.83 2.16 0.78
RPT AR1402 2.84 1.22 0.87 2.41 0.89
RPT AR1403 2.92 1.22 0.87 2.41 0.89
RPT AR1602 2.96 1.27 0.94 2.53 0.94
RPT AR1603 3.04 1.27 0.94 2.53 0.94
RPT_AR
