2053_RPT_AG

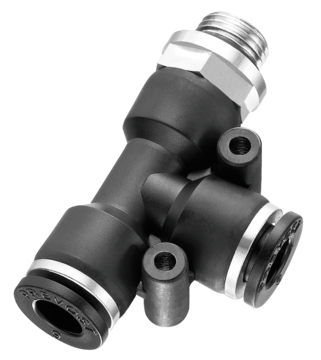

Male run tee - Fractional inch tube to 10-32 UNF - RPT AG

Plus de références

Reference

Net weight (kg)

Ø ext. (in)

Male thread

Pour tube Ø ext.

Female thread

RPT AG1826

RPT AG3126

RPT AG4126

RPT AG5326

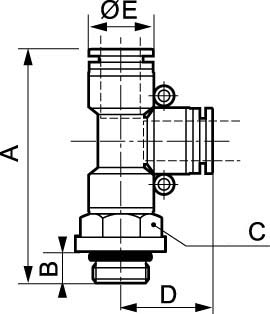

Dimensions

RPT_AG_us

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

RPT AG1826

RPT AG3126

RPT AG4126

1.89

0.16

1770

0.81

RPT AG5326

1.67

0.16

1675.28

0.69

Reference	Net weight (kg)	Ø ext. (in)	Male thread	Pour tube Ø ext.	Female thread	3D
RPT AG1826	0.080 Kg	1/8" inch	UNF10-32	1/8 inch	UNF 10-32
RPT AG3126	0.080 Kg	3/16" inch	UNF10-32	3/16 inch	UNF 10-32
RPT AG4126	0.080 Kg	1/4" inch	UNF10-32	1/4 inch	UNF 10-32
RPT AG5326	0.080 Kg	5/32" inch	UNF10-32	5/32 inch	UNF 10-32

Dimensions

Reference	A inch	B inch	C inch	D inch
RPT AG1826
RPT AG3126
RPT AG4126	1.89	0.16	1770	0.81
RPT AG5326	1.67	0.16	1675.28	0.69

RPT_AG_us
