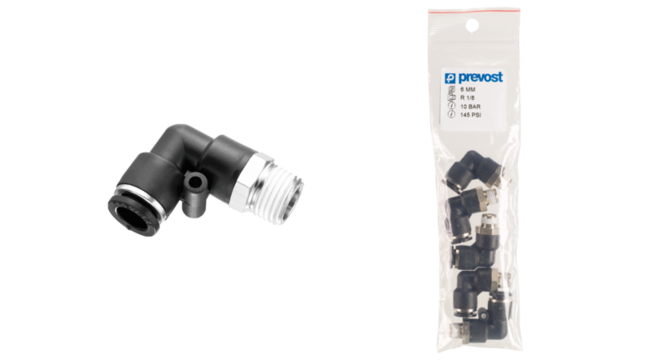

Male elbow - Fractional inch tube to male NPT - RPC MR
Net weight (kg)
0,1445
Male thread
R3/8
Max. output pressure
145.00
Description
Reference
Net weight (kg)
Male thread
Max. output pressure
Ø ext. (in)
For pipe OD =
Temperature
RPC MR3120P
RPC MR3121P
RPC MR3821P
RPC MR3822P
RPC MR4120P
RPC MR4121P
RPC MR5120P
RPC MR5121P
RPC MR5122P
RPC MR0400P
RPC MR0401P
RPC MR0600P
RPC MR0601P
RPC MR0800P
RPC MR0801P
RPC MR0802P
RPC MR1001P
RPC MR1002P
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPC MR3120P
RPC MR3121P
RPC MR3821P
RPC MR3822P
RPC MR4120P
RPC MR4121P
RPC MR5120P
RPC MR5121P
RPC MR5122P
RPC MR0400P
RPC MR0401P
RPC MR0600P
RPC MR0601P
RPC MR0800P
RPC MR0801P
RPC MR0802P
RPC MR1001P
RPC MR1002P
Description
| Reference | Net weight (kg) | Male thread | Max. output pressure | Ø ext. (in) | For pipe OD = | Temperature | 3D |
|---|---|---|---|---|---|---|---|
| RPC MR3120P | 1/8" NPT | 145.00 | 3/16" | 3/16 inch | 32.00°F to 140.00°F | ||
| RPC MR3121P | 1/4" NPT | 145.00 | 3/16" | 3/16 inch | 32.00°F to 140.00°F | ||
| RPC MR3821P | 1/4" NPT | 145.00 | 3/8" | 3/8 inch | 32.00°F to 140.00°F | ||
| RPC MR3822P | 3/8" NPT | 145.00 | 3/8" | 3/8 inch | 32.00°F to 140.00°F | ||
| RPC MR4120P | 1/8" NPT | 145.00 | 1/4" | 1/4 inch | 32.00°F to 140.00°F | ||
| RPC MR4121P | 1/4" NPT | 145.00 | 1/4" | 1/4 inch | 32.00°F to 140.00°F | ||
| RPC MR5120P | 1/8" NPT | 145.00 | 5/16" | 5/16 inch | 32.00°F to 140.00°F | ||
| RPC MR5121P | 1/4" NPT | 145.00 | 5/16" | 5/16 inch | 32.00°F to 140.00°F | ||
| RPC MR5122P | 3/8" NPT | 145.00 | 5/16" | 5/16 inch | 32.00°F to 140.00°F | ||
| RPC MR0400P | 0,091 | R1/8 | 145.00 | ||||
| RPC MR0401P | 0,071 | R1/4 | 145.00 | ||||
| RPC MR0600P | 0,0595 | R1/8 | 145.00 | ||||
| RPC MR0601P | 0,078 | R1/4 | 145.00 | ||||
| RPC MR0800P | 0,077 | R1/8 | 145.00 | ||||
| RPC MR0801P | 0,0854 | R1/4 | 145.00 | ||||
| RPC MR0802P | 0,1165 | R3/8 | 145.00 | ||||
| RPC MR1001P | 0,136 | R1/4 | 145.00 | ||||
| RPC MR1002P | 0,1445 | R3/8 | 145.00 |
Dimensions
| Reference |
|---|
| RPC MR3120P |
| RPC MR3121P |
| RPC MR3821P |
| RPC MR3822P |
| RPC MR4120P |
| RPC MR4121P |
| RPC MR5120P |
| RPC MR5121P |
| RPC MR5122P |
| RPC MR0400P |
| RPC MR0401P |
| RPC MR0600P |
| RPC MR0601P |
| RPC MR0800P |
| RPC MR0801P |
| RPC MR0802P |
| RPC MR1001P |
| RPC MR1002P |
