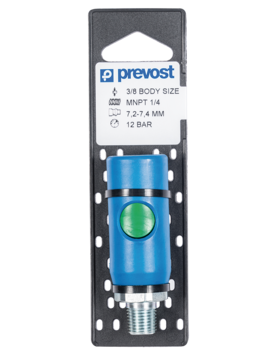

Male coupler on plate
Flow rate
29 CFM (P = 87 psi, ΔP = 8.7 psi)
ID passage
3/8"
Max. output pressure
174 psi
Temperature
5°F to 158°F
Plus de références
Reference
Net weight (kg)
Male thread
Profile
ERC 071251CP
ERC 071252CP
ERC 071253CP
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ERC 071251CP
3.13
1.1
0.91
ERC 071252CP
3.13
1.1
0.91
ERC 071253CP
3.21
1.1
0.91
| Reference | Net weight (kg) | Male thread | Profile | 3D |
|---|---|---|---|---|
| ERC 071251CP | 0,124 Kg | NPT1/4 | HIGH_FLOW | |
| ERC 071252CP | NPT3/8 | HIGH_FLOW | ||
| ERC 071253CP | 0,136 Kg | NPT1/2 | HIGH_FLOW |
