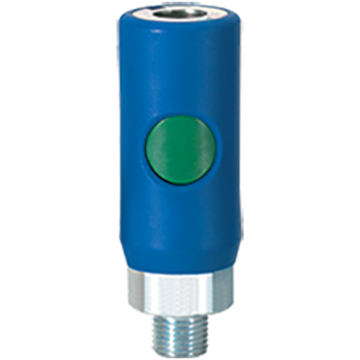

362_ERC_071150

Male coupler

Flow rate

29 CFM (P = 87 psi, ΔP = 8.7 psi)

ID passage

3/8"

Max. output pressure

174 psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Male thread

Profile

ERC 071251

ERC 071252

ERC 071253

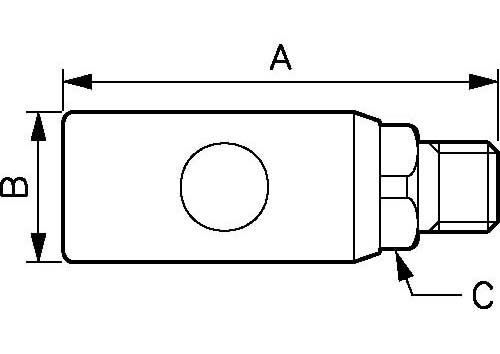

Dimensions

ERC_071151

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ERC 071251

3.13

1.1

0.91

ERC 071252

3.13

1.1

0.91

ERC 071253

3.21

1.1

0.91

Reference	Net weight (kg)	Male thread	Profile	3D
ERC 071251	0.110 Kg	NPT1/4	HIGH_FLOW
ERC 071252	0.116 Kg	NPT3/8	HIGH_FLOW
ERC 071253	0.122 Kg	NPT1/2	HIGH_FLOW

Dimensions

Reference	A inch	B inch	C inch
ERC 071251	3.13	1.1	0.91
ERC 071252	3.13	1.1	0.91
ERC 071253	3.21	1.1	0.91

ERC_071151
