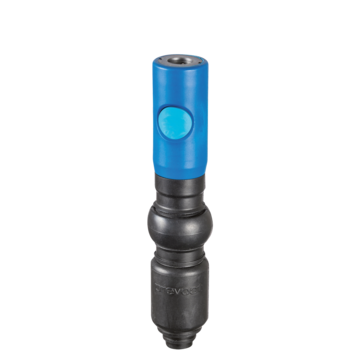

338_IRC_081100_800FA

Hose stem swivel coupler

ID passage

3/8"

Max. output pressure

174 psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Flow rate

Pour tuyaux Ø int.

Profile

IRC 081806FA

IRC 081810FA

IRC 081813FA

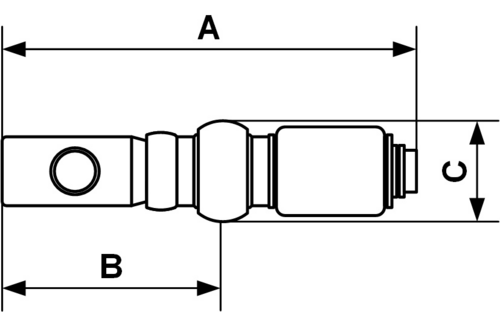

Dimensions

IRC_081800_FA

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

IRC 081806FA

7.28

2.68

1.42

IRC 081810FA

7.29

2.7

1.57

IRC 081813FA

7.29

2.7

1.57

Reference	Net weight (kg)	Flow rate	Pour tuyaux Ø int.	Profile	3D
IRC 081806FA	0,301 Kg	69 CFM (P = 87 psi, ΔP = 8.7 psi)	1/4"	INDUSTRIAL
IRC 081810FA	0,277 Kg	69 CFM (P = 87 psi, ΔP = 8.7 psi)	3/8"	INDUSTRIAL
IRC 081813FA	0,283 Kg	69 CFM (P = 87 psi, ΔP = 8.7 psi)	1/2''	INDUSTRIAL

Dimensions

Reference	A inch	B inch	C inch
IRC 081806FA	7.28	2.68	1.42
IRC 081810FA	7.29	2.7	1.57
IRC 081813FA	7.29	2.7	1.57

IRC_081800_FA
