2094_ASI_061800

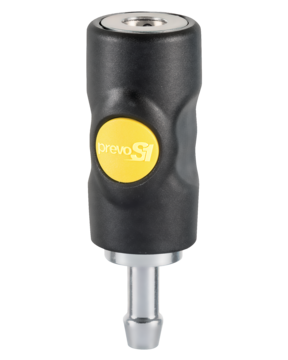

Hose stem coupler

Flow rate

28 CFM (P = 87 psi, ΔP = 8.7 psi)

ID passage

1/4"

Output pressure

29 to 174psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Pour tuyaux Ø int.

Profile

ASI 061806

ASI 061808

ASI 061810

ASI 061813

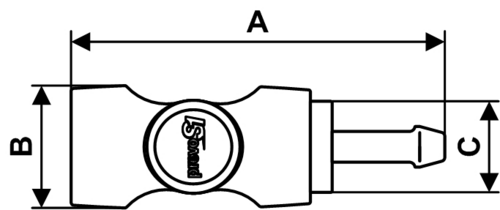

Dimensions

ASI 061800

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ASI 061806

3.27

1.18

0.76

ASI 061808

3.27

1.18

0.76

ASI 061810

3.27

1.18

0.76

ASI 061813

3.46

1.18

0.76

Reference	Net weight (kg)	Pour tuyaux Ø int.	Profile	3D
ASI 061806	0.090 Kg	1/4" inch	ARO 210
ASI 061808	0,09 Kg	3/8'' inch	ARO 210
ASI 061810	0.096 Kg	3/8" inch	ARO 210
ASI 061813	0.100 Kg	1/2'' inch	ARO 210

Dimensions

Reference	A inch	B inch	C inch
ASI 061806	3.27	1.18	0.76
ASI 061808	3.27	1.18	0.76
ASI 061810	3.27	1.18	0.76
ASI 061813	3.46	1.18	0.76

ASI 061800
