366_ERC_071100FA

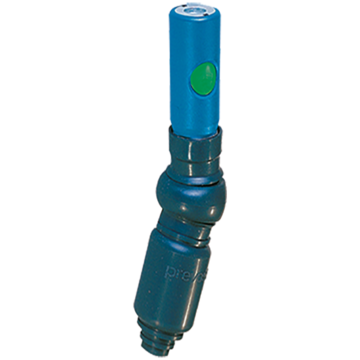

Female thread swivel coupler

Flow rate

29 CFM (P = 87 psi, ΔP = 8.7 psi)

ID passage

3/8"

Max. output pressure

174 psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Profile

Female thread

ERC 071201FA

ERC 071202FA

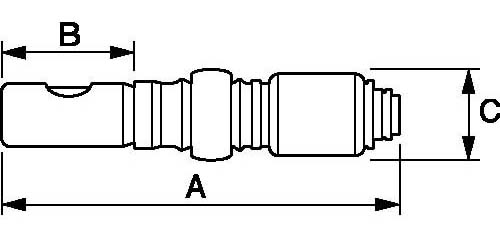

Dimensions

ERC_071101FA

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ERC 071201FA

6.9

2.3

1.57

ERC 071202FA

6.9

2.3

1.57

Reference	Net weight (kg)	Profile	Female thread	3D
ERC 071201FA	0.239 Kg	HIGH_FLOW	NPT1/4
ERC 071202FA	0,242 Kg	HIGH_FLOW	NPT3/8

Dimensions

Reference	A inch	B inch	C inch
ERC 071201FA	6.9	2.3	1.57
ERC 071202FA	6.9	2.3	1.57

ERC_071101FA
