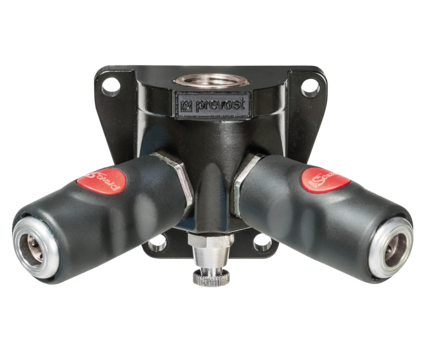

Female thread double wall manifold - 2 couplers and drain - Automotive Profile

2396_USI_068100WF
2396_USI_068100WF
Flow rate
29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)
ID passage
1/4"
Max. output pressure
174.00
Profile
AUTOMOTIVE
Temperature
5.00°F to 158.00°F

Description

Reference
Net weight (kg)
Flow rate
ID passage
Max. output pressure
Profile
Temperature
Female thread
USI 068103WK
USI 068104WK
USI 068203WK
USI 068204WK

Dimensions

USI_068_WK
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
USI 068103WK
2.8
2.24
1.5
2.76
2.76
USI 068104WK
2.8
2.24
1.5
2.76
2.76
USI 068203WK
2.8
2.24
1.5
2.76
USI 068204WK
2.8
2.24
1.5
2.76

Description

Reference Net weight (kg) Flow rate ID passage Max. output pressure Profile Temperature Female thread 3D
USI 068103WK 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE 5.00°F to 158.00°F 3D
USI 068104WK 0,705 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE 5.00°F to 158.00°F 3D
USI 068203WK 0,76 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4'' 174.00 AUTOMOTIVE 5.00°F to 158.00°F 1/2" NPT
USI 068204WK 0,73 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4'' 174.00 AUTOMOTIVE 5.00°F to 158.00°F 3/4" NPT

Dimensions

Reference A inch B inch C inch D inch E inch
USI 068103WK 2.8 2.24 1.5 2.76 2.76
USI 068104WK 2.8 2.24 1.5 2.76 2.76
USI 068203WK 2.8 2.24 1.5 2.76
USI 068204WK 2.8 2.24 1.5 2.76
USI_068_WK
