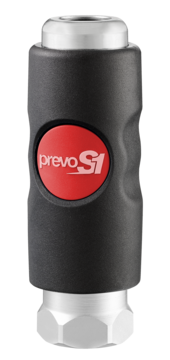

3513_USI 11 1102EB

Female coupler

Flow rate

105 CFM (P = 87 psi, ΔP = 8.7 psi)

ID passage

1/2"

Output pressure

29 to 174psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Profile

Female thread

USI 111202EB

USI 111203EB

USI 111204EB

Dimensions

USI_111200

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

USI 111202EB

3.94

1.46

1.02

USI 111203EB

4.02

1.46

1.02

USI 111204EB

4.25

1.46

1.18

Reference	Net weight (kg)	Profile	Female thread	3D
USI 111202EB	0.223 Kg	AUTOMOTIVE	NPT3/8
USI 111203EB	0.226 Kg	AUTOMOTIVE	NPT1/2
USI 111204EB	0.246 Kg	AUTOMOTIVE	NPT3/4

Dimensions

Reference	A inch	B inch	C inch
USI 111202EB	3.94	1.46	1.02
USI 111203EB	4.02	1.46	1.02
USI 111204EB	4.25	1.46	1.18

USI_111200
