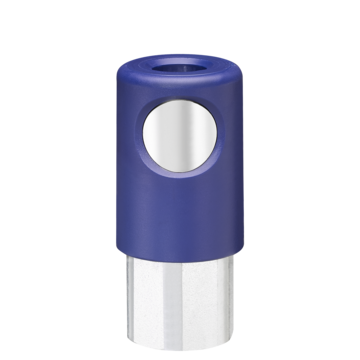

317_IRC_061100

Female coupler

Flow rate

28 CFM (P = 87 psi, ΔP = 8.7 psi)

ID passage

1/4"

Max. output pressure

174 psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Profile

Female thread

IRC 061201

IRC 061202

IRC 061203

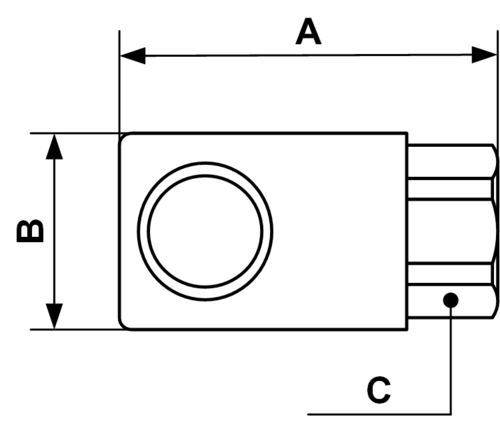

Dimensions

IRC_061100

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

IRC 061201

2.13

1.1

0.91

IRC 061202

2.44

1.1

0.91

IRC 061203

2.56

1.1

0.91

Reference	Net weight (kg)	Profile	Female thread	3D
IRC 061201	0.073 Kg	INDUSTRIAL	NPT1/4
IRC 061202	0.093 Kg	INDUSTRIAL	NPT3/8
IRC 061203	0.097 Kg	INDUSTRIAL	NPT1/2

Dimensions

Reference	A inch	B inch	C inch
IRC 061201	2.13	1.1	0.91
IRC 061202	2.44	1.1	0.91
IRC 061203	2.56	1.1	0.91

IRC_061100
