1657_ESI_071100
3D

ESI 07 - Raccord fileté femelle cylindrique

Disconnection
Bouton
Material
Composite
Max. output pressure
12 bar
Sécurité
Sécurité
Temperature
-15°C to 70°C
ID passage
7.4 mm
Type of filling
A obturation

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
Female thread
ESI 071201
ESI 071202

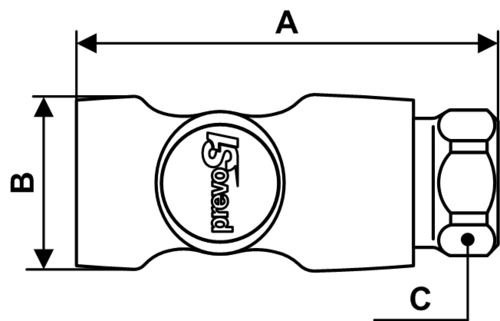

Dimensions

ESI 071100
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ESI 071201
2.77
1.27
0.91
ESI 071202
2.83
1.27
0.91
Reference Net weight (kg) Flow rate Profile Female thread 3D
ESI 071201 0.116 Kg 64 CFM (P = 87 psi, ΔP = 8.7 psi) HIGH_FLOW NPT1/4 3D
ESI 071202 0.114 Kg 64 CFM (P = 87 psi, ΔP = 8.7 psi) HIGH_FLOW NPT3/8 3D

Dimensions

Reference A inch B inch C inch
ESI 071201 2.77 1.27 0.91
ESI 071202 2.83 1.27 0.91
ESI 071100
