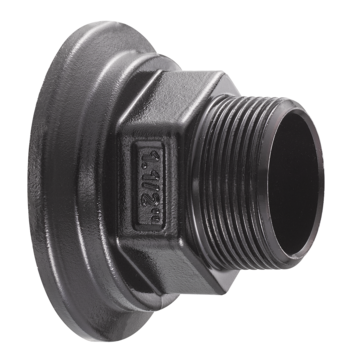

PPS1 MT - Male threaded connector CC

Name: PPS1 MT - Male threaded connector CC
Brand: Prevost
SKU: PPS1 MT80259
Availability: InStock

Max. output pressure

232 psi

Temperature

-4°F to 176°F

Plus de références

Reference

Net weight (kg)

BSPT male thread

For pipe OD

Female thread

PPS1 MT80259

PPS1 MT63258

PPS1 MT50257

PPS1 MT80258

PPS1 MT63257

PPS1 MT50256

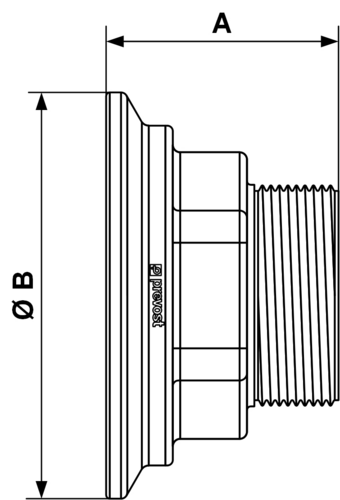

Dimensions

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

PPS1 MT80259

PPS1 MT63258

PPS1 MT50257

PPS1 MT80258

PPS1 MT63257

PPS1 MT50256

Reference	Net weight (kg)	BSPT male thread	For pipe OD	Female thread
PPS1 MT80259	0.630 Kg	NPT2 1/2	3"
PPS1 MT63258	0.497 Kg	2" NPT	2 1/2"	NPT2
PPS1 MT50257	0.284 Kg	NPT1 1/2	2"
PPS1 MT80258	0.600 Kg	NPT2	3"
PPS1 MT63257	0.445 Kg	NPT1 1/2	2 1/2"
PPS1 MT50256	0.300 Kg	NPT1 1/4	2"

Dimensions

Reference
PPS1 MT80259
PPS1 MT63258
PPS1 MT50257
PPS1 MT80258
PPS1 MT63257
PPS1 MT50256
