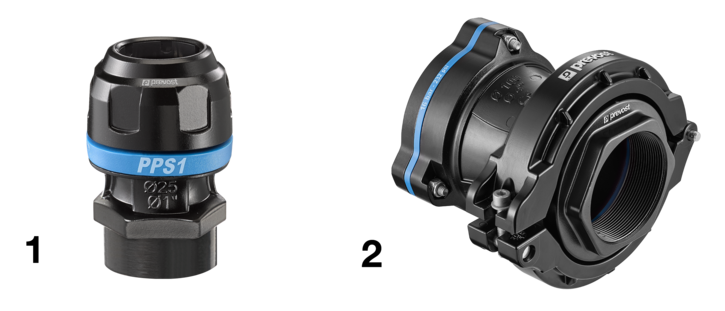

PPS1 MF - Aluminum female thread straight fitting for pipe
Net weight (kg)
0,057
For pipe OD =
1/2" inch
Max. output pressure
232.00
Female thread
NPT3/8
Temperature
-4.00°F to 176.00°F
Numéro d'image
1.
Description
Reference
Net weight (kg)
For pipe OD =
Max. output pressure
Female thread
Temperature
Numéro d'image
PPS1 MF16202
PPS1 MF16203
PPS1 MF20203
PPS1 MF20204
PPS1 MF25203
PPS1 MF25204
PPS1 MF25205
PPS1 MF32205
PPS1 MF32206
PPS1 MF40206
PPS1 MF40207
PPS1 MF50207
PPS1 MF50208
PPS1 MF63208
PPS1 MF63209
PPS1 MF802010
PPS1 MF80209

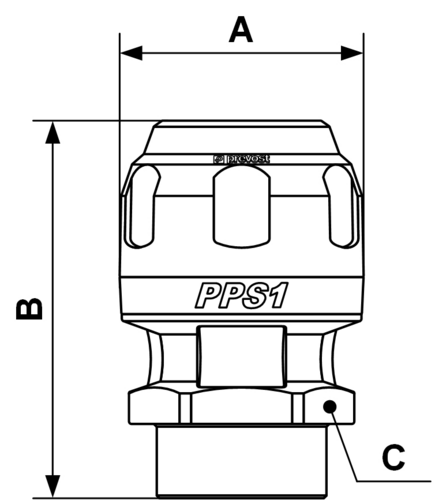

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS1 MF16202
1.26
2.09
1.02
PPS1 MF16203
1.26
2.09
1.02
PPS1 MF20203
1.5
2.48
1.26
PPS1 MF20204
1.5
2.48
1.26
PPS1 MF25203
1.81
2.83
1.5
PPS1 MF25204
1.81
2.83
1.5
PPS1 MF25205
1.81
2.83
1.5
PPS1 MF32205
2.24
3.27
1.81
PPS1 MF32206
2.24
3.27
1.81
PPS1 MF40206
2.68
3.86
2.24
PPS1 MF40207
2.68
4.06
2.24
PPS1 MF50207
3.31
4.33
2.83
PPS1 MF50208
3.31
4.53
2.83
PPS1 MF63208
3.94
5.39
3.54
PPS1 MF63209
3.94
5.59
3.54
PPS1 MF802010
4.76
6.46
4.33
PPS1 MF80209
4.76
6.46
4.33
Description
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| PPS1 MF16202 | 1.26 | 2.09 | 1.02 |
| PPS1 MF16203 | 1.26 | 2.09 | 1.02 |
| PPS1 MF20203 | 1.5 | 2.48 | 1.26 |
| PPS1 MF20204 | 1.5 | 2.48 | 1.26 |
| PPS1 MF25203 | 1.81 | 2.83 | 1.5 |
| PPS1 MF25204 | 1.81 | 2.83 | 1.5 |
| PPS1 MF25205 | 1.81 | 2.83 | 1.5 |
| PPS1 MF32205 | 2.24 | 3.27 | 1.81 |
| PPS1 MF32206 | 2.24 | 3.27 | 1.81 |
| PPS1 MF40206 | 2.68 | 3.86 | 2.24 |
| PPS1 MF40207 | 2.68 | 4.06 | 2.24 |
| PPS1 MF50207 | 3.31 | 4.33 | 2.83 |
| PPS1 MF50208 | 3.31 | 4.53 | 2.83 |
| PPS1 MF63208 | 3.94 | 5.39 | 3.54 |
| PPS1 MF63209 | 3.94 | 5.59 | 3.54 |
| PPS1 MF802010 | 4.76 | 6.46 | 4.33 |
| PPS1 MF80209 | 4.76 | 6.46 | 4.33 |
