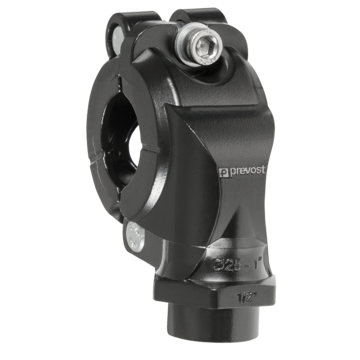

PPS1 BT - Aluminum female thread tapping flange
Net weight (kg)
0,195
For pipe OD =
1" inch
Max. output pressure
232.00
Female thread
NPT3/8
Temperature
-4.00°F to 176.00°F
Description
Reference
Net weight (kg)
For pipe OD =
Max. output pressure
Female thread
Temperature
PPS1 BT25202
PPS1 BT25203
PPS1 BT32203
PPS1 BT32204
PPS1 BT40203
PPS1 BT40204
PPS1 BT40205
PPS1 BT50203
PPS1 BT50204
PPS1 BT50205
PPS1 BT63203
PPS1 BT63204
PPS1 BT63205
PPS1 BT80203
PPS1 BT80204
PPS1 BT80205

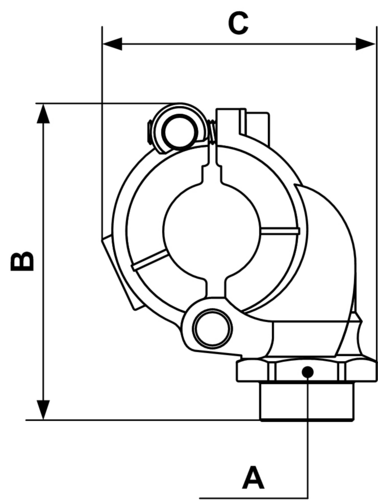

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PPS1 BT25202
1.26
3.23
2.76
PPS1 BT25203
1.26
3.23
2.76
PPS1 BT32203
1.26
3.23
2.76
PPS1 BT32204
1.26
3.31
2.76
PPS1 BT40203
1.73
4.33
4.02
PPS1 BT40204
1.73
4.33
4.02
PPS1 BT40205
1.73
4.33
4.02
PPS1 BT50203
1.73
4.33
4.02
PPS1 BT50204
1.73
4.33
4.02
PPS1 BT50205
1.73
4.33
4.02
PPS1 BT63203
2.24
6.34
5.79
PPS1 BT63204
2.24
6.34
5.79
PPS1 BT63205
2.24
6.38
5.79
PPS1 BT80203
2.24
6.34
5.79
PPS1 BT80204
2.24
6.34
5.79
PPS1 BT80205
2.24
6.38
5.79
