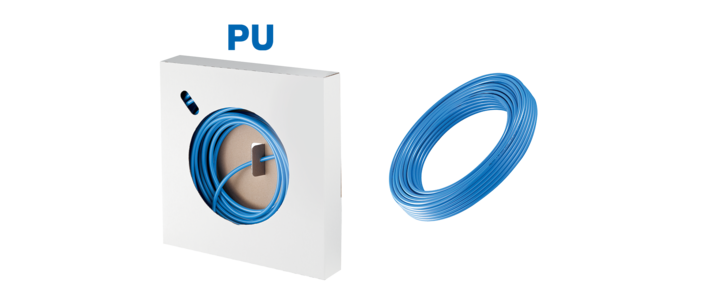

Polyurethane Ester base tubing in 25 meter-box (unit of sales = 1 box)
Polyurethane Ester base tubing in 25 meter-box (unit of sales = 1 box)
Net weight (kg)
0,588
Color
Blue
Max. output pressure
131.00
Radius of curve
0.59 inch
Temperature
-4.00°F to 158.00°F
Description
Reference
Net weight (kg)
Color
Max. output pressure
Radius of curve
Temperature
PUBE M040625
PUBE M071025
PUBE M081225
PUBE M250425
PUBE M550825
PUBE M951425
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PUBE M040625
PUBE M071025
PUBE M081225
PUBE M250425
PUBE M550825
PUBE M951425
Description
| Reference | Net weight (kg) | Color | Max. output pressure | Radius of curve | Temperature | 3D |
|---|---|---|---|---|---|---|
| PUBE M040625 | 0,588 | Blue | 131.00 | 0.59 inch | -4.00°F to 158.00°F | |
| PUBE M071025 | 1,5 | Blue | 123.00 | 0.98 inch | -4.00°F to 158.00°F | |
| PUBE M081225 | 2,3 | Blue | 131.00 | 1.38 inch | -4.00°F to 158.00°F | |
| PUBE M250425 | 0,336 | Blue | 145.00 | 0.47 inch | -4.00°F to 158.00°F | |
| PUBE M550825 | 0,948 | Blue | 123.00 | 0.79 inch | -4.00°F to 158.00°F | |
| PUBE M951425 | 3 | Blue | 131.00 | 1.77 inch | -4.00°F to 158.00°F |
