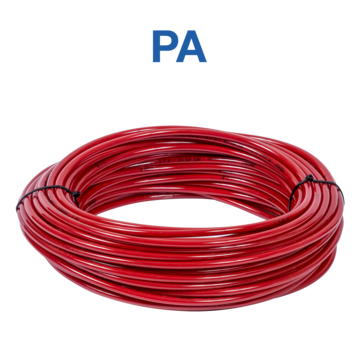

Polyamide (Nylon) Tubing in 100 ft rolls
Color
Red
Ø ext. (in)
1/4" or 0
Ø int. (in)
0,180 in
Length
100 ft
Max. output pressure
290
Radius of curve
1,25 inch
Temperature
-60°F to 199°F
Description
Reference
Color
Ø ext. (in)
Ø int. (in)
Length
Max. output pressure
Radius of curve
Temperature
PARD I1814100
PARD I2738100
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
PARD I1814100
PARD I2738100
Description
| Reference | Color | Ø ext. (in) | Ø int. (in) | Length | Max. output pressure | Radius of curve | Temperature | 3D |
|---|---|---|---|---|---|---|---|---|
| PARD I1814100 | Red | 1/4" or 0 | 0,180 in | 100 ft | 290 | 1,25 inch | -60°F to 199°F | |
| PARD I2738100 | Red | 3/8" or 0 | 0.275 in | 100 ft | 240 | 1,2 inch | -60°F to 199°F |
