Home Compressed air network Fittings Male flow regulator with knob (control out) - Male NPT to metric tube - RPM OR
Back
1718_RPM_OR

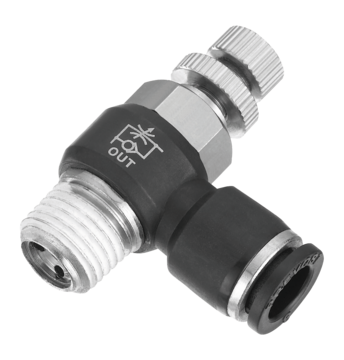

Male flow regulator with knob (control out) - Male NPT to metric tube - RPM OR

Max. output pressure
145 psi
Temperature
32°F to 140°F

Plus de références

Reference
Net weight (kg)
Male thread
Ø ext. (in)
Pour tube Ø ext.
RPM OR0400
RPM OR0401
RPM OR0600
RPM OR0601
RPM OR0602
RPM OR0603
RPM OR0800
RPM OR0801
RPM OR0802
RPM OR0803
RPM OR1000
RPM OR1001
RPM OR1002
RPM OR1003
RPM OR1201
RPM OR1202
RPM OR1203
RPM OR1820
RPM OR5320
RPM OR3120
RPM OR3121
RPM OR3122
RPM OR4120
RPM OR4121
RPM OR4122
RPM OR5120
RPM OR5121
RPM OR5122
RPM OR5123
RPM OR3821
RPM OR3822
RPM OR3823
RPM OR2122
RPM OR2123

Dimensions

RPM_IR_OR_BR
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPM OR0400
1.54
0.86
0.39
1.24
0.57
RPM OR0401
1.97
0.94
0.55
1.61
0.72
RPM OR0600
1.54
0.91
0.39
1.24
0.57
RPM OR0601
1.97
1
0.55
1.61
0.72
RPM OR0602
2.32
1.07
0.75
1.89
0.87
RPM OR0603
2.48
1.19
0.94
1.97
1.08
RPM OR0800
1.54
0.97
0.39
1.24
0.57
RPM OR0801
1.97
1.06
0.55
1.61
0.72
RPM OR0802
2.32
1.13
0.75
1.89
0.87
RPM OR0803
2.48
1.2
0.94
1.97
1.08
RPM OR1000
1.54
1.12
0.39
1.24
0.57
RPM OR1001
1.97
1.22
0.55
1.61
0.72
RPM OR1002
2.32
1.22
0.75
1.89
0.87
RPM OR1003
2.48
1.34
0.94
1.97
1.08
RPM OR1201
1.97
1.25
0.55
1.61
0.72
RPM OR1202
2.32
1.34
0.75
1.89
0.57
RPM OR1203
2.48
1.41
0.94
1.97
1.08
RPM OR1820
RPM OR5320
0.86
0.31
1770
0.47
RPM OR3120
0.91
0.31
1770
0.47
RPM OR3121
1
0.43
1677.72
0.47
RPM OR3122
1.07
0.47
1772.4
0.61
RPM OR4120
0.91
0.31
1770
0.47
RPM OR4121
1
0.43
1677.72
0.47
RPM OR4122
1.07
0.47
1772.4
0.61
RPM OR5120
0.97
0.31
1770
0.47
RPM OR5121
1.06
0.43
1677.72
0.47
RPM OR5122
1.13
0.47
1772.4
0.61
RPM OR5123
1.2
0.59
0.04
0.69
0.54
RPM OR3821
1.22
0.43
1677.72
0.47
RPM OR3822
1.22
0.47
1772.4
0.61
RPM OR3823
1.34
0.59
0.04
0.69
0.66
RPM OR2122
RPM OR2123
1.39
0.59
0.04
0.69
0.81
Reference Net weight (kg) Male thread Ø ext. (in) Pour tube Ø ext. 3D
RPM OR0400 0,019 Kg R1/8
RPM OR0401 0,037 Kg R1/4
RPM OR0600 0.019 Kg R1/8
RPM OR0601 0,037 Kg R1/4
RPM OR0602 0,069 Kg R3/8
RPM OR0603 0,102 Kg R1/2
RPM OR0800 0.020 Kg R1/8
RPM OR0801 0,038 Kg R1/4
RPM OR0802 0,069 Kg R3/8
RPM OR0803 0,103 Kg R1/2
RPM OR1000 0,021 Kg R1/8
RPM OR1001 0,039 Kg R1/4
RPM OR1002 0,07 Kg R3/8
RPM OR1003 0,103 Kg R1/2
RPM OR1201 0,042 Kg R1/4
RPM OR1202 0,072 Kg R3/8
RPM OR1203 0,105 Kg R1/2
RPM OR1820 0.080 Kg NPT1/8 1/8" inch 1/8 inch
RPM OR5320 0.080 Kg NPT1/8 5/32" inch 5/32 inch
RPM OR3120 0.080 Kg NPT1/8 3/16" inch 3/16 inch
RPM OR3121 0.080 Kg NPT1/4 3/16" inch 3/16 inch
RPM OR3122 0.080 Kg NPT3/8 3/16" inch 3/16 inch
RPM OR4120 0,021 Kg NPT1/8 1/4" inch 1/4 inch
RPM OR4121 0.080 Kg NPT1/4 1/4" inch 1/4 inch
RPM OR4122 0.080 Kg NPT3/8 1/4" inch 1/4 inch
RPM OR5120 0.080 Kg NPT1/8 5/16" inch 5/16 inch
RPM OR5121 0.080 Kg NPT1/4 5/16" inch 5/16 inch
RPM OR5122 0.080 Kg NPT3/8 5/16" inch 5/16 inch
RPM OR5123 0.019 Kg NPT1/2 5/16" inch 5/16 inch
RPM OR3821 0,04 Kg NPT1/4 3/8" inch 3/8 inch
RPM OR3822 0,066 Kg NPT3/8 3/8" inch 3/8 inch
RPM OR3823 0.080 Kg NPT1/2 3/8" inch 3/8 inch
RPM OR2122 0.080 Kg NPT3/8 1/2" inch 1/2 inch
RPM OR2123 0.080 Kg NPT1/2 1/2" inch 1/2 inch

Dimensions

Reference A inch B inch C inch D inch E inch
RPM OR0400 1.54 0.86 0.39 1.24 0.57
RPM OR0401 1.97 0.94 0.55 1.61 0.72
RPM OR0600 1.54 0.91 0.39 1.24 0.57
RPM OR0601 1.97 1 0.55 1.61 0.72
RPM OR0602 2.32 1.07 0.75 1.89 0.87
RPM OR0603 2.48 1.19 0.94 1.97 1.08
RPM OR0800 1.54 0.97 0.39 1.24 0.57
RPM OR0801 1.97 1.06 0.55 1.61 0.72
RPM OR0802 2.32 1.13 0.75 1.89 0.87
RPM OR0803 2.48 1.2 0.94 1.97 1.08
RPM OR1000 1.54 1.12 0.39 1.24 0.57
RPM OR1001 1.97 1.22 0.55 1.61 0.72
RPM OR1002 2.32 1.22 0.75 1.89 0.87
RPM OR1003 2.48 1.34 0.94 1.97 1.08
RPM OR1201 1.97 1.25 0.55 1.61 0.72
RPM OR1202 2.32 1.34 0.75 1.89 0.57
RPM OR1203 2.48 1.41 0.94 1.97 1.08
RPM OR1820
RPM OR5320 0.86 0.31 1770 0.47
RPM OR3120 0.91 0.31 1770 0.47
RPM OR3121 1 0.43 1677.72 0.47
RPM OR3122 1.07 0.47 1772.4 0.61
RPM OR4120 0.91 0.31 1770 0.47
RPM OR4121 1 0.43 1677.72 0.47
RPM OR4122 1.07 0.47 1772.4 0.61
RPM OR5120 0.97 0.31 1770 0.47
RPM OR5121 1.06 0.43 1677.72 0.47
RPM OR5122 1.13 0.47 1772.4 0.61
RPM OR5123 1.2 0.59 0.04 0.69 0.54
RPM OR3821 1.22 0.43 1677.72 0.47
RPM OR3822 1.22 0.47 1772.4 0.61
RPM OR3823 1.34 0.59 0.04 0.69 0.66
RPM OR2122
RPM OR2123 1.39 0.59 0.04 0.69 0.81
RPM_IR_OR_BR
