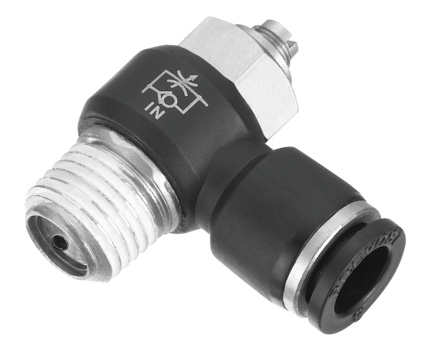

Male flow regulator with adjusting screw (control in) - Fractional inch tube to male NPT - RPV IR
Male flow regulator with adjusting screw (control in) - Fractional inch tube to male NPT - RPV IR
Net weight (kg)
0,019
Male thread
R1/8
Max. output pressure
145.00
Temperature
32.00°F to 140.00°F
Description
Reference
Net weight (kg)
Male thread
Max. output pressure
Temperature
Ø ext. (in)
For pipe OD =
RPV IR0400
RPV IR0401
RPV IR0600
RPV IR0601
RPV IR0602
RPV IR0603
RPV IR0800
RPV IR0801
RPV IR0802
RPV IR0803
RPV IR1000
RPV IR1001
RPV IR1002
RPV IR1003
RPV IR1201
RPV IR1202
RPV IR1203
RPV IR1820
RPV IR2122
RPV IR2123
RPV IR3120
RPV IR3121
RPV IR3122
RPV IR3821
RPV IR3822
RPV IR3823
RPV IR4120
RPV IR4121
RPV IR4122
RPV IR5120
RPV IR5121
RPV IR5122
RPV IR5123
RPV IR5320
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPV IR0400
1.3
0.86
0.39
1
0.57
RPV IR0401
1.61
0.94
0.55
1.26
0.72
RPV IR0600
1.3
0.91
0.39
1
0.57
RPV IR0601
1.61
1
0.55
1.26
0.72
RPV IR0602
2.05
1.07
0.75
1.61
0.87
RPV IR0603
2.24
1.19
0.94
1.73
1.08
RPV IR0800
1.3
0.97
0.39
1
0.57
RPV IR0801
1.61
1.06
0.55
1.26
0.72
RPV IR0802
2.05
1.13
0.75
1.61
0.87
RPV IR0803
2.24
1.2
0.94
1.73
1.08
RPV IR1000
1.3
1.12
0.39
1
0.57
RPV IR1001
1.61
1.22
0.55
1.26
0.72
RPV IR1002
2.05
1.22
0.75
1.61
0.87
RPV IR1003
2.24
1.34
0.94
1.73
1.08
RPV IR1201
1.61
1.25
0.55
1.26
0.72
RPV IR1202
2.05
1.34
0.75
1.61
0.87
RPV IR1203
2.24
1.41
0.94
1.73
1.08
RPV IR1820
RPV IR2122
RPV IR2123
1.39
0.59
0.04
0.69
0.81
RPV IR3120
0.91
0.31
1770
0.47
RPV IR3121
1
0.43
1677.72
0.47
RPV IR3122
1.07
0.47
1772.4
0.61
RPV IR3821
1.22
0.43
1677.72
0.47
RPV IR3822
1.22
0.47
1772.4
0.61
RPV IR3823
1.34
0.59
0.04
0.69
0.66
RPV IR4120
0.91
0.31
1770
0.47
RPV IR4121
1
0.43
1677.72
0.47
RPV IR4122
1.07
0.47
1772.4
0.61
RPV IR5120
0.97
0.31
1770
0.47
RPV IR5121
1.06
0.43
1677.72
0.47
RPV IR5122
1.13
0.47
1772.4
0.61
RPV IR5123
1.2
0.59
0.04
0.69
0.54
RPV IR5320
0.86
0.31
1770
0.47
Description
| Reference | Net weight (kg) | Male thread | Max. output pressure | Temperature | Ø ext. (in) | For pipe OD = | 3D |
|---|---|---|---|---|---|---|---|
| RPV IR0400 | 0,015 | R1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0401 | 0,031 | R1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0600 | 0,016 | R1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0601 | 0,031 | R1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0602 | 0,065 | R3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0603 | 0,1 | R1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0800 | 0,017 | R1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0801 | 0,032 | R1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0802 | 0,066 | R3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR0803 | 0,1 | R1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1000 | 0,019 | R1/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1001 | 0,035 | R1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1002 | 0,068 | R3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1003 | 0,102 | R1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1201 | 0,038 | R1/4 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1202 | 0,07 | R3/8 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1203 | 0,105 | R1/2 | 145.00 | 32.00°F to 140.00°F | |||
| RPV IR1820 | 1/8" NPT | 1/8" | 1/8 inch | ||||
| RPV IR2122 | 3/8" NPT | 1/2" | 1/2 inch | ||||
| RPV IR2123 | NPT1/2 | 145.00 | 32.00°F to 140.00°F | 1/2" | 1/2 inch | ||
| RPV IR3120 | 1/8" NPT | 150 | 32°F to 140°F | 3/16" | 3/16 inch | ||
| RPV IR3121 | 1/4" NPT | 150 | 32°F to 140°F | 3/16" | 3/16 inch | ||
| RPV IR3122 | 3/8" NPT | 150 | 32°F to 140°F | 3/16" | 3/16 inch | ||
| RPV IR3821 | 0,037 | 1/4" NPT | 150 | 32°F to 140°F | 3/8" | 3/8 inch | |
| RPV IR3822 | 3/8" NPT | 150 | 32°F to 140°F | 3/8" | 3/8 inch | ||
| RPV IR3823 | NPT1/2 | 145.00 | 32.00°F to 140.00°F | 3/8" | 3/8 inch | ||
| RPV IR4120 | 1/8" NPT | 150 | 32°F to 140°F | 1/4" | 1/4 inch | ||
| RPV IR4121 | 0,032 | 1/4" NPT | 150 | 32°F to 140°F | 1/4" | 1/4 inch | |
| RPV IR4122 | 3/8" NPT | 150 | 32°F to 140°F | 1/4" | 1/4 inch | ||
| RPV IR5120 | 1/8" NPT | 150 | 32°F to 140°F | 5/16" | 5/16 inch | ||
| RPV IR5121 | 1/4" NPT | 150 | 32°F to 140°F | 5/16" | 5/16 inch | ||
| RPV IR5122 | 3/8" NPT | 150 | 32°F to 140°F | 5/16" | 5/16 inch | ||
| RPV IR5123 | NPT1/2 | 145.00 | 32.00°F to 140.00°F | 5/16" | 5/16 inch | ||
| RPV IR5320 | 1/8" NPT | 150 | 32°F to 140°F | 5/32" | 5/32 inch |
Dimensions
| Reference | A inch | B inch | C inch | D inch | E inch |
|---|---|---|---|---|---|
| RPV IR0400 | 1.3 | 0.86 | 0.39 | 1 | 0.57 |
| RPV IR0401 | 1.61 | 0.94 | 0.55 | 1.26 | 0.72 |
| RPV IR0600 | 1.3 | 0.91 | 0.39 | 1 | 0.57 |
| RPV IR0601 | 1.61 | 1 | 0.55 | 1.26 | 0.72 |
| RPV IR0602 | 2.05 | 1.07 | 0.75 | 1.61 | 0.87 |
| RPV IR0603 | 2.24 | 1.19 | 0.94 | 1.73 | 1.08 |
| RPV IR0800 | 1.3 | 0.97 | 0.39 | 1 | 0.57 |
| RPV IR0801 | 1.61 | 1.06 | 0.55 | 1.26 | 0.72 |
| RPV IR0802 | 2.05 | 1.13 | 0.75 | 1.61 | 0.87 |
| RPV IR0803 | 2.24 | 1.2 | 0.94 | 1.73 | 1.08 |
| RPV IR1000 | 1.3 | 1.12 | 0.39 | 1 | 0.57 |
| RPV IR1001 | 1.61 | 1.22 | 0.55 | 1.26 | 0.72 |
| RPV IR1002 | 2.05 | 1.22 | 0.75 | 1.61 | 0.87 |
| RPV IR1003 | 2.24 | 1.34 | 0.94 | 1.73 | 1.08 |
| RPV IR1201 | 1.61 | 1.25 | 0.55 | 1.26 | 0.72 |
| RPV IR1202 | 2.05 | 1.34 | 0.75 | 1.61 | 0.87 |
| RPV IR1203 | 2.24 | 1.41 | 0.94 | 1.73 | 1.08 |
| RPV IR1820 | |||||
| RPV IR2122 | |||||
| RPV IR2123 | 1.39 | 0.59 | 0.04 | 0.69 | 0.81 |
| RPV IR3120 | 0.91 | 0.31 | 1770 | 0.47 | |
| RPV IR3121 | 1 | 0.43 | 1677.72 | 0.47 | |
| RPV IR3122 | 1.07 | 0.47 | 1772.4 | 0.61 | |
| RPV IR3821 | 1.22 | 0.43 | 1677.72 | 0.47 | |
| RPV IR3822 | 1.22 | 0.47 | 1772.4 | 0.61 | |
| RPV IR3823 | 1.34 | 0.59 | 0.04 | 0.69 | 0.66 |
| RPV IR4120 | 0.91 | 0.31 | 1770 | 0.47 | |
| RPV IR4121 | 1 | 0.43 | 1677.72 | 0.47 | |
| RPV IR4122 | 1.07 | 0.47 | 1772.4 | 0.61 | |
| RPV IR5120 | 0.97 | 0.31 | 1770 | 0.47 | |
| RPV IR5121 | 1.06 | 0.43 | 1677.72 | 0.47 | |
| RPV IR5122 | 1.13 | 0.47 | 1772.4 | 0.61 | |
| RPV IR5123 | 1.2 | 0.59 | 0.04 | 0.69 | 0.54 |
| RPV IR5320 | 0.86 | 0.31 | 1770 | 0.47 |
