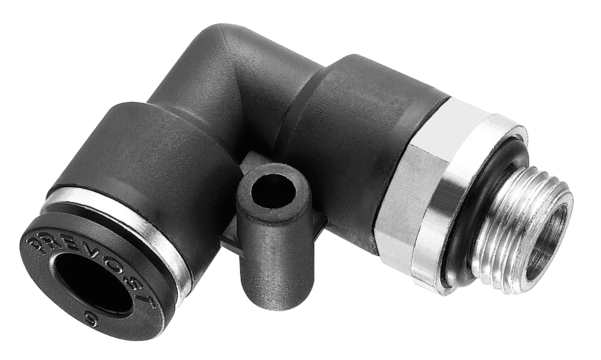

Male elbow - Fractional inch tube to 10-32 UNF - RPC MG
Net weight (kg)
0.08
Male thread
UNF 10-32
For pipe OD =
3/16 inch
Female thread
UNF 10-32
Description
Reference
Net weight (kg)
Ø ext. (in)
Male thread
For pipe OD =
Female thread
Max. output pressure
Temperature
RPC MG3126
RPC MG4126
RPC MG5326
RPC MG1826
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPC MG3126
RPC MG4126
1.08
0.16
1770
0.81
RPC MG5326
0.98
0.16
1675.28
0.69
RPC MG1826
Description
| Reference | Net weight (kg) | Ø ext. (in) | Male thread | For pipe OD = | Female thread | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|---|---|
| RPC MG3126 | 0.08 | UNF 10-32 | 3/16 inch | UNF 10-32 | ||||
| RPC MG4126 | 0,0143 | 1/4" | UNF10-32 | 1/4 inch | UNF 10-32 | 150 | 32°F to 140°F | |
| RPC MG5326 | 0,009 | 5/32" | UNF10-32 | 5/32 inch | UNF 10-32 | 150 | 32°F to 140°F | |
| RPC MG1826 | 0.08 | 1/8" | UNF10-32 | 1/8 inch | UNF 10-32 |
Dimensions
| Reference | A inch | B inch | C inch | D inch |
|---|---|---|---|---|
| RPC MG3126 | ||||
| RPC MG4126 | 1.08 | 0.16 | 1770 | 0.81 |
| RPC MG5326 | 0.98 | 0.16 | 1675.28 | 0.69 |
| RPC MG1826 |
