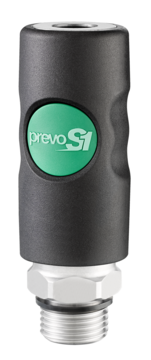

Male coupler

1
ESI_111150_EB
ESI_111150_EB
Net weight (kg)
0,233
Flow rate
125.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)
ID passage
1/2"
Male thread
NPT3/8
Max. output pressure
174.00
Profile
HIGH_FLOW
Temperature
5.00°F to 158.00°F

Description

Reference
Net weight (kg)
Flow rate
ID passage
Male thread
Max. output pressure
Profile
Temperature
ESI 111252EB
ESI 111253EB
ESI 111254EB

Dimensions

ESI_111150
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ESI 111252EB
4.06
1.46
1.02
ESI 111253EB
4.21
1.46
1.02
ESI 111254EB
4.29
1.46
1.18

Description

Reference Net weight (kg) Flow rate ID passage Male thread Max. output pressure Profile Temperature 3D
ESI 111252EB 0,233 125.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT3/8 174.00 HIGH_FLOW 5.00°F to 158.00°F 3D
ESI 111253EB 0,237 125.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT1/2 174.00 HIGH_FLOW 5.00°F to 158.00°F 3D
ESI 111254EB 0,266 125.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT3/4 174.00 HIGH_FLOW 5.00°F to 158.00°F 3D

Dimensions

Reference A inch B inch C inch
ESI 111252EB 4.06 1.46 1.02
ESI 111253EB 4.21 1.46 1.02
ESI 111254EB 4.29 1.46 1.18
ESI_111150
