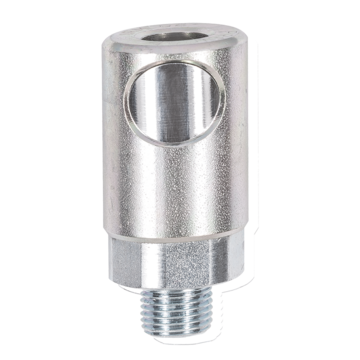

306_IRM_061150
3D

Male coupler

ID passage
1/4"
Max. output pressure
174 psi
Temperature
5°F to 158°F

Plus de références

Reference
Net weight (kg)
Flow rate
BSPT male thread
Profile
IRM 061251
IRM 061252

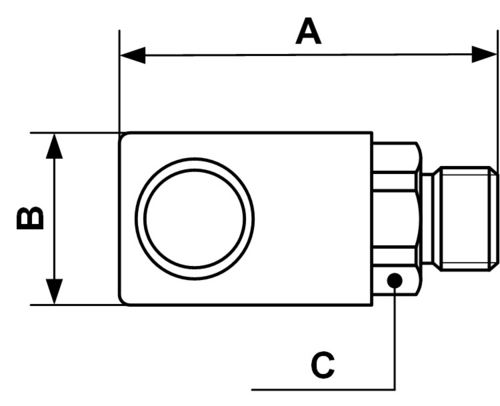

Dimensions

IRM_061150
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
IRM 061251
2.38
0.91
0.91
IRM 061252
3.01
1.02
0.91
Reference Net weight (kg) Flow rate BSPT male thread Profile 3D
IRM 061251 0.137 Kg 26 CFM (P = 87 psi, ΔP = 8.7 psi) NPT1/4 INDUSTRIAL 3D
IRM 061252 0.142 Kg 26 CFM (P = 87 psi, ΔP = 8.7 psi) NPT3/8 INDUSTRIAL 3D

Dimensions

Reference A inch B inch C inch
IRM 061251 2.38 0.91 0.91
IRM 061252 3.01 1.02 0.91
IRM_061150
