318_IRC_061150

Male coupler

Flow rate

28 CFM (P = 87 psi, ΔP = 8.69 psi)

ID passage

1/4"

Max. output pressure

174 psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Male thread

Profile

IRC 061251

IRC 061252

IRC 061253

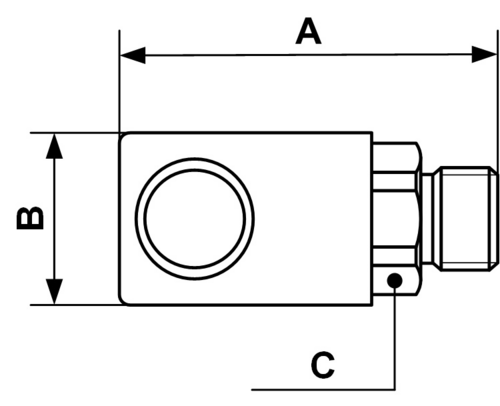

Dimensions

IRC_061150

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

IRC 061251

2.44

1.1

0.91

IRC 061252

2.44

1.1

0.91

IRC 061253

2.52

1.1

0.91

Reference	Net weight (kg)	Male thread	Profile	3D
IRC 061251	0,078 Kg	NPT1/4	INDUSTRIAL
IRC 061252	0,084 Kg	NPT3/8	INDUSTRIAL
IRC 061253	0,09 Kg	NPT1/2	INDUSTRIAL

Dimensions

Reference	A inch	B inch	C inch
IRC 061251	2.44	1.1	0.91
IRC 061252	2.44	1.1	0.91
IRC 061253	2.52	1.1	0.91

IRC_061150
