Male coupler

1
2404_ISI_111150
2404_ISI_111150
Net weight (kg)
0,504
Flow rate
130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)
ID passage
1/2"
Male thread
NPT3/8
Max. output pressure
232.00
Profile
INDUSTRIAL
Temperature
5.00°F to 158.00°F

Description

Reference
Net weight (kg)
Flow rate
ID passage
Male thread
Max. output pressure
Profile
Temperature
ISI 111252
ISI 111253
ISI 111254

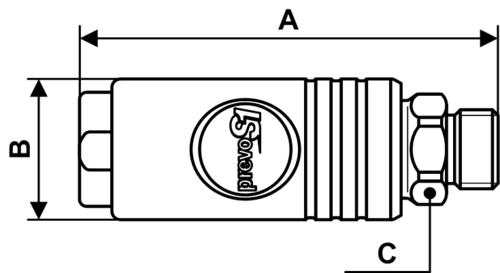

Dimensions

ISI_111150
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ISI 111252
4.39
1.46
1.02
ISI 111253
4.55
1.46
1.02
ISI 111254
4.63
1.46
1.18

Description

Reference Net weight (kg) Flow rate ID passage Male thread Max. output pressure Profile Temperature 3D
ISI 111252 0,504 130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT3/8 232.00 INDUSTRIAL 5.00°F to 158.00°F 3D
ISI 111253 0,508 130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT1/2 232.00 INDUSTRIAL 5.00°F to 158.00°F 3D
ISI 111254 0,54 130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/2" NPT3/4 232.00 INDUSTRIAL 5.00°F to 158.00°F 3D

Dimensions

Reference A inch B inch C inch
ISI 111252 4.39 1.46 1.02
ISI 111253 4.55 1.46 1.02
ISI 111254 4.63 1.46 1.18
ISI_111150
