Male coupler
NPT male thread
1/4" MNPT
Technology
"One push" safety system (avoids hose whip)
Operating pressure
29 to 174 psi
Flow rate at 100 psi
81 cfm (ΔP = 10 psi)
ID Passage
3/8" body size
Temperature
+5°F to +158°F
Construction
Composite body
Highlight
Anti-static
Non scratch
Description
Reference
NPT male thread
USI 081251
USI 081252
USI 081253

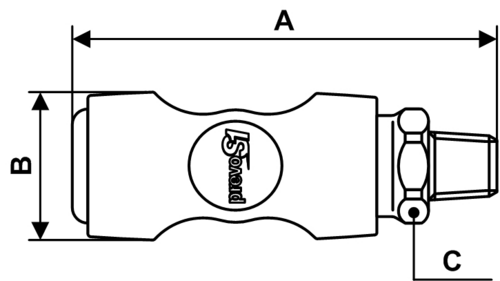

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
USI 081251
0.30971128608924
0.10826771653543
0.075459317585302
USI 081252
0.30971128608924
0.10826771653543
0.075459317585302
USI 081253
0.32283464566929
0.10826771653543
0.075459317585302
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| USI 081251 | 0.30971128608924 | 0.10826771653543 | 0.075459317585302 |
| USI 081252 | 0.30971128608924 | 0.10826771653543 | 0.075459317585302 |
| USI 081253 | 0.32283464566929 | 0.10826771653543 | 0.075459317585302 |
