Male coupler
Net weight (kg)
0,11
Flow rate
29 CFM (P = 87 PSI ,ΔP = 8.69 PSI)
ID passage
1/4"
Male thread
G1/4
Max. output pressure
174
Profile
AUTOMOTIVE
Temperature
5°F to 158°F
Description
Reference
Net weight (kg)
Flow rate
ID passage
Male thread
Max. output pressure
Profile
Temperature
USI 061151
USI 061152
USI 061153
USI 061251
USI 061252
USI 061253

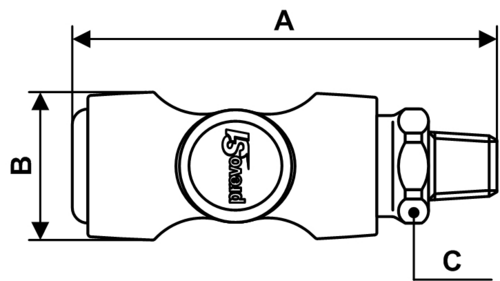

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
USI 061151
3.23
1.18
0.79
USI 061152
3.23
1.18
0.79
USI 061153
3.46
1.18
0.91
USI 061251
3.23
1.18
0.79
USI 061252
3.23
1.18
0.79
USI 061253
3.46
1.18
0.91
Description
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| USI 061151 | 3.23 | 1.18 | 0.79 |
| USI 061152 | 3.23 | 1.18 | 0.79 |
| USI 061153 | 3.46 | 1.18 | 0.91 |
| USI 061251 | 3.23 | 1.18 | 0.79 |
| USI 061252 | 3.23 | 1.18 | 0.79 |
| USI 061253 | 3.46 | 1.18 | 0.91 |
