Filter-regulator with manual valve - 3 units

3647_ATU VB2585101
3647_ATU VB2585101
Flow rate
14 CFM (P = 87 psi ,ΔP = 14.50 psi)
Filtration
25.00 µm
Outlet working pressure
7.3 to 123.3psi
Max. output pressure
145
Female thread
NPT1/8

Description

Reference
Flow rate
Filtration
Outlet working pressure
Max. output pressure
Female thread
ATU VB2585200
ATU VB2585201
ATU VB2585202
ATU VB2585203

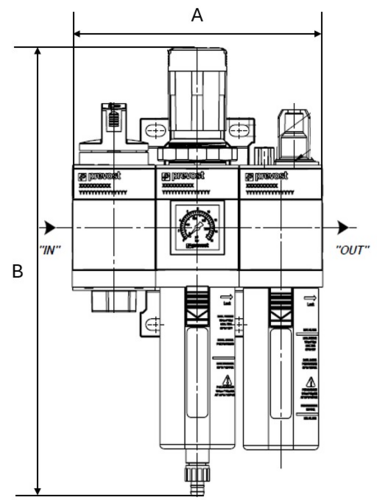

Dimensions

ATU VB
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ATU VB2585200
3.82
11.89
ATU VB2585201
3.82
11.89
ATU VB2585202
3.82
11.89
ATU VB2585203
3.82
11.89

Description

Reference Flow rate Filtration Outlet working pressure Max. output pressure Female thread 3D
ATU VB2585200 14 CFM (P = 87 psi ,ΔP = 14.50 psi) 25.00 µm 7.3 to 123.3psi 145 NPT1/8 3D
ATU VB2585201 25 CFM (P = 87 psi ,ΔP = 14.50 psi) 25.00 µm 7.3 to 123.3psi 145 NPT1/4 3D
ATU VB2585202 71 CFM (P = 87 psi ,ΔP = 14.50 psi) 25.00 µm 7.3 to 123.3psi 145 NPT3/8 3D
ATU VB2585203 117 CFM (P = 87 psi ,ΔP = 14.50 psi) 25.00 µm 7.3 to 123.3psi 145 NPT1/2 3D

Dimensions

Reference A inch B inch
ATU VB2585200 3.82 11.89
ATU VB2585201 3.82 11.89
ATU VB2585202 3.82 11.89
ATU VB2585203 3.82 11.89
ATU VB
