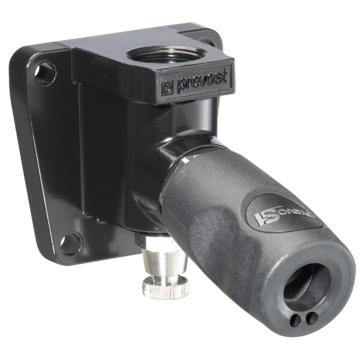

2617_CSI_081103WK
3D

Female thread single wall manifold - 1 coupler and drain - ISO 6150 C Profile

Flow rate
72 CFM (P = 87 psi, ΔP = 8.7 psi)
ID passage
3/8"
Output pressure
29 to 174psi
Temperature
5°F to 158°F

Plus de références

Reference
Net weight (kg)
Profile
Female thread
CSI 081203WK

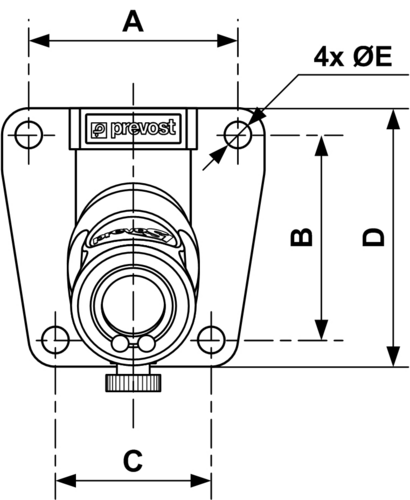

Dimensions

CSI_081_WK
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
CSI 081203WK
2.01
1.97
1.5
2.48
Reference Net weight (kg) Profile Female thread 3D
CSI 081203WK 0,508 Kg ISO 6150C NPT1/2 3D

Dimensions

Reference A inch B inch C inch D inch
CSI 081203WK 2.01 1.97 1.5 2.48
CSI_081_WK
