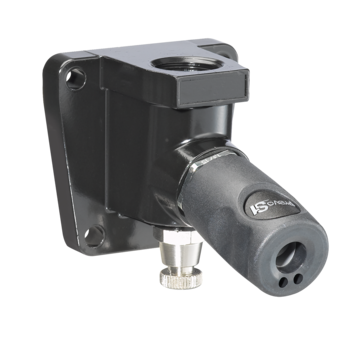

Female thread single wall manifold - 1 coupler and drain - ISO 6150 C Profile

Name: Female thread single wall manifold - 1 coupler and drain - ISO 6150 C Profile
Brand: Prevost
SKU: CSI 061203WK
Availability: InStock

ID passage

1/4"

Output pressure

29 to 174psi

Temperature

5°F to 158°F

Plus de références

Reference

Net weight (kg)

Flow rate

Profile

Female thread

CSI 061203WK

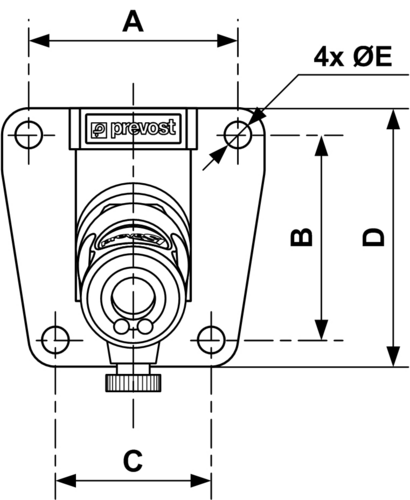

Dimensions

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

CSI 061203WK

2.01

1.97

1.5

2.48

Reference	Net weight (kg)	Flow rate	Profile	Female thread	3D
CSI 061203WK	0.010 Kg	29 CFM (P = 87 psi, ΔP = 8.7 psi)	ISO 6150C	NPT1/2

Dimensions

Reference	A inch	B inch	C inch	D inch
CSI 061203WK	2.01	1.97	1.5	2.48
