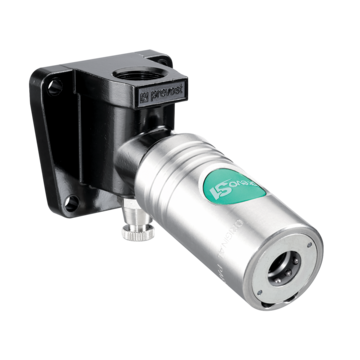

Female thread single wall manifold - 1 coupler and drain - High Flow Profile

Flow rate

125 CFM (P = 87 PSI ,ΔP = 8.69 PSI)

ID passage

1/2"

Max. output pressure

174

Profile

HIGH_FLOW

Female thread

NPT1/2

Temperature

5°F to 158°F

Reference

Flow rate

ID passage

Max. output pressure

Profile

Female thread

Temperature

ESI 111203WK

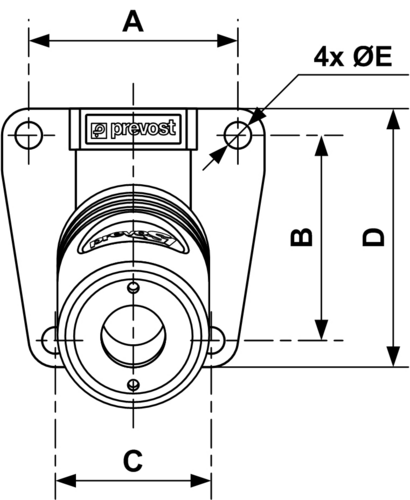

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ESI 111203WK

2.01

1.97

1.5

2.48

Reference	Flow rate	ID passage	Max. output pressure	Profile	Female thread	Temperature	3D
ESI 111203WK	125 CFM (P = 87 PSI ,ΔP = 8.69 PSI)	1/2"	174	HIGH_FLOW	NPT1/2	5°F to 158°F

Reference	A inch	B inch	C inch	D inch
ESI 111203WK	2.01	1.97	1.5	2.48
