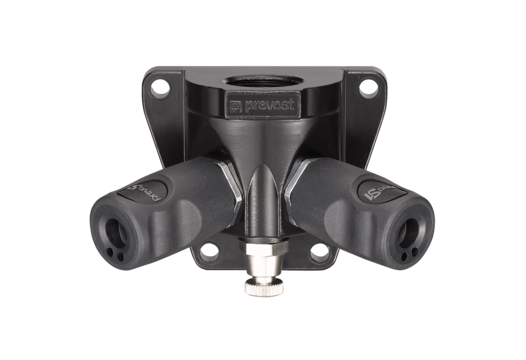

Female thread double wall manifold - 2 couplers and drain - ISO 6150 C Profile

ID passage
1/4"
Output pressure
29 to 174psi
Temperature
5°F to 158°F

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
Female thread
CSI 068204WK
CSI 068203WK

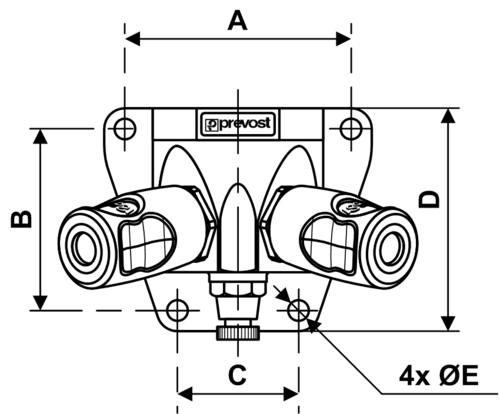

Dimensions

CSI_068_WK
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
CSI 068204WK
2.8
2.24
1.5
2.76
CSI 068203WK
2.8
2.24
1.5
2.76
Reference Net weight (kg) Flow rate Profile Female thread 3D
CSI 068204WK 0.646 Kg 29 CFM (P = 87 psi, ΔP = 8.7 psi) ISO 6150C NPT3/4 3D
CSI 068203WK 0.010 Kg 29 CFM (P = 87 psi, ΔP = 8.7 psi) ISO 6150C NPT1/2 3D

Dimensions

Reference A inch B inch C inch D inch
CSI 068204WK 2.8 2.24 1.5 2.76
CSI 068203WK 2.8 2.24 1.5 2.76
CSI_068_WK
