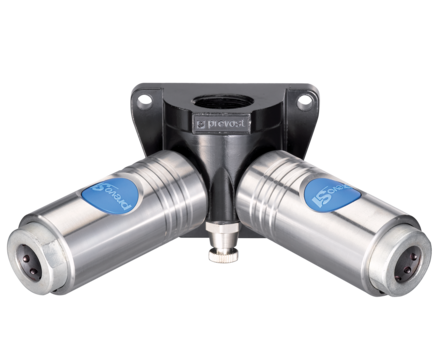

Female thread double wall manifold - 2 couplers and drain - Industrial Profile

Flow rate

130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)

ID passage

1/2''

Max. output pressure

174.00

Profile

INDUSTRIAL

Female thread

3/4" NPT

Temperature

5.00°F to 158.00°F

Reference

Flow rate

ID passage

Max. output pressure

Profile

Female thread

Temperature

ISI 118204WK

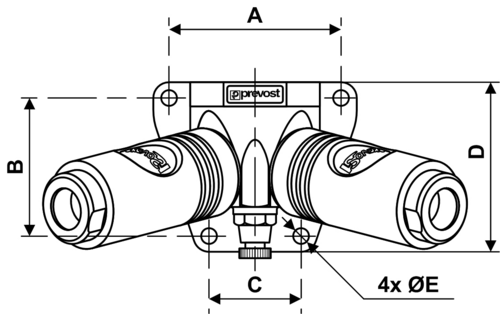

Reference

A (inch)

B (inch)

C (inch)

D (inch)

E (inch)

ISI 118204WK

2.8

2.24

1.5

2.76

Reference	Flow rate	ID passage	Max. output pressure	Profile	Female thread	Temperature	3D
ISI 118204WK	130.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)	1/2''	174.00	INDUSTRIAL	3/4" NPT	5.00°F to 158.00°F

Reference	A inch	B inch	C inch	D inch
ISI 118204WK	2.8	2.24	1.5	2.76
