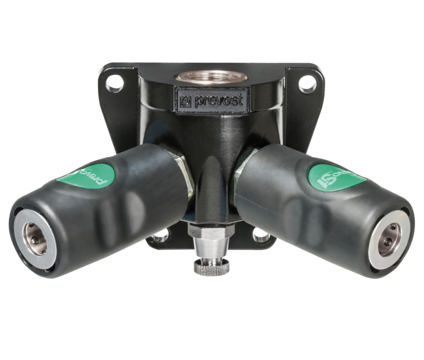

Female thread double wall manifold - 2 couplers and drain - High Flow Profile

2391_ESI_078100WF
2391_ESI_078100WF
Net weight (kg)
0,79
Flow rate
64.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)
ID passage
3/8''
Max. output pressure
174.00
Profile
HIGH_FLOW
Female thread
1/2" NPT
Temperature
5.00°F to 158.00°F

Description

Reference
Net weight (kg)
Flow rate
ID passage
Max. output pressure
Profile
Female thread
Temperature
ESI 078203WK
ESI 078204WK

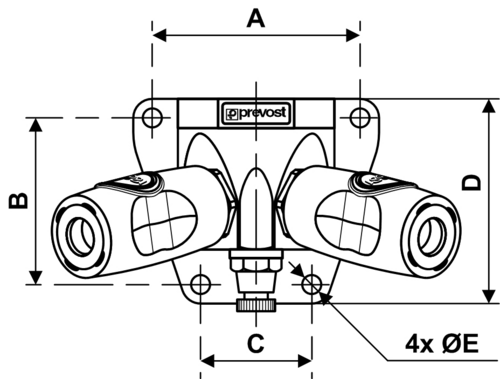

Dimensions

ESI_078_WK
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ESI 078203WK
2.8
2.24
1.5
2.76
ESI 078204WK
2.8
2.24
1.5
2.76
0.26

Description

Reference Net weight (kg) Flow rate ID passage Max. output pressure Profile Female thread Temperature 3D
ESI 078203WK 0,79 64.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 3/8'' 174.00 HIGH_FLOW 1/2" NPT 5.00°F to 158.00°F
ESI 078204WK 0,736 64.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 3/8" 174.00 HIGH_FLOW NPT3/4 5.00°F to 158.00°F 3D

Dimensions

Reference A inch B inch C inch D inch E inch
ESI 078203WK 2.8 2.24 1.5 2.76
ESI 078204WK 2.8 2.24 1.5 2.76 0.26
ESI_078_WK
