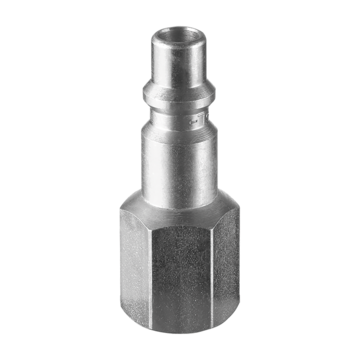

Female plug
Net weight (kg)
0,037
ID passage
3/8"
Profile
INDUSTRIAL
Female thread
NPT1/4
Description
Reference
Net weight (kg)
ID passage
Profile
Female thread
IRP 086201
IRP 086202
IRP 086203
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
IRP 086201
1.77
0.67
IRP 086202
1.93
0.83
IRP 086203
2.09
0.98
Description
| Reference | Net weight (kg) | ID passage | Profile | Female thread | 3D |
|---|---|---|---|---|---|
| IRP 086201 | 0,037 | 3/8" | INDUSTRIAL | NPT1/4 | |
| IRP 086202 | 0,049 | 3/8" | INDUSTRIAL | NPT3/8 | |
| IRP 086203 | 0,07 | 3/8" | INDUSTRIAL | NPT1/2 |
Dimensions
| Reference | A inch | B inch |
|---|---|---|
| IRP 086201 | 1.77 | 0.67 |
| IRP 086202 | 1.93 | 0.83 |
| IRP 086203 | 2.09 | 0.98 |
