Home Quick couplings Compressed air Female coupler
Back
1
1074_ARC_061200
3D

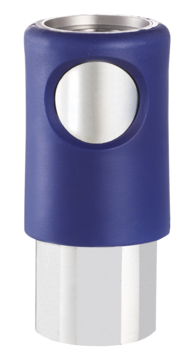

Female coupler

ID passage
1/4"
Max. output pressure
174 psi
Temperature
5°F to 158°F

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
Female thread
ARC 061201
ARC 061202
ARC 061203

Dimensions

Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
ARC 061201
2.13
1.1
0.91
ARC 061202
ARC 061203
2.52
1.1
0.91
Reference Net weight (kg) Flow rate Profile Female thread 3D
ARC 061201 0.081 Kg 22 CFM (P = 87 psi, ΔP = 8.7 psi) ARO 210 NPT1/4 3D
ARC 061202 0.100 Kg ARO 210 NPT3/8 3D
ARC 061203 0.105 Kg 22 CFM (P = 87 psi, ΔP = 8.7 psi) ARO 210 NPT1/2 3D
