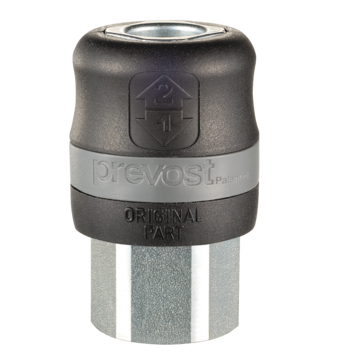

Female coupler
Flow rate
69 CFM (P = 87 psi, ΔP = 8.7 psi)
ID passage
3/8"
Output pressure
29 to 174psi
Temperature
5°F to 158°F
Plus de références
Reference
Net weight (kg)
Profile
Female thread
OSG 081201V

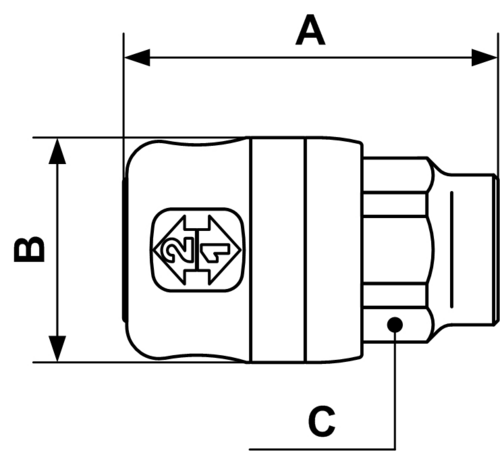

Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
OSG 081201V
2.13
1.3
1.06
| Reference | Net weight (kg) | Profile | Female thread | 3D |
|---|---|---|---|---|
| OSG 081201V | 0,101 Kg | ASIAN | NPT1/4 |
Dimensions
| Reference | A inch | B inch | C inch |
|---|---|---|---|
| OSG 081201V | 2.13 | 1.3 | 1.06 |
