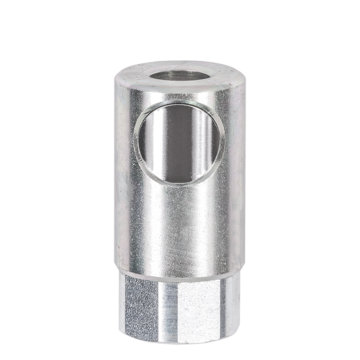

305_IRM_061100
3D

Female coupler

ID passage
1/4"
Max. output pressure
174 psi
Temperature
5°F to 158°F

Plus de références

Reference
Net weight (kg)
Flow rate
Profile
Female thread
IRM 061201
IRM 061203

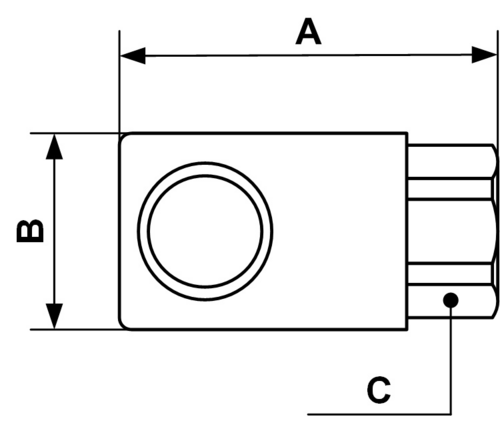

Dimensions

IRM_061100
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
IRM 061201
2.07
1.02
0.91
IRM 061203
2.38
0.91
0.91
Reference Net weight (kg) Flow rate Profile Female thread 3D
IRM 061201 0.133 Kg 26 CFM (P = 87 psi, ΔP = 8.7 psi) INDUSTRIAL NPT1/4 3D
IRM 061203 0.155 Kg 26 CFM (P = 87 psi, ΔP = 8.7 psi) INDUSTRIAL NPT1/2 3D

Dimensions

Reference A inch B inch C inch
IRM 061201 2.07 1.02 0.91
IRM 061203 2.38 0.91 0.91
IRM_061100

⚠️ California Proposition 65 Warning

This product can expose you to chemicals known to the State of California to cause cancer and/or reproductive harm. For more information visit www.P65Warnings.ca.gov.
