Female coupler

3510_ISI 11 1102EB_PREVOST-800px.png
3551_ISI 111103EBCP_PREVOST-800px.png
3510_ISI 11 1102EB_PREVOST-800px.png
3551_ISI 111103EBCP_PREVOST-800px.png
NPT female thread
3/8" FNPT
Technology
"One push" safety system (avoids hose whip)
Operating pressure
29 to 174 psi
Flow rate at 100 psi
148 cfm (ΔP : 8.70 psi)
ID Passage
1/2" body size
Temperature
+5°F to +158°F
Construction
Polyamide composite body
Highlight
Anti-static Excellent efficiency Non scratch

Description

Reference
NPT female thread
ISI 111202EB
ISI 111203EB
ISI 111204EB

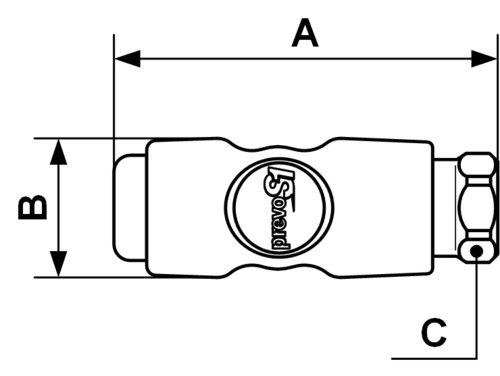

Dimensions

Reference
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
ISI 111202EB
99
37
26
ISI 111203EB
101
37
26
ISI 111204EB
108
37
30

Description

Reference NPT female thread 3D
ISI 111202EB 3/8" FNPT 3D
ISI 111203EB 1/2" FNPT 3D
ISI 111204EB 3/4" FNPT 3D

Dimensions

Reference A mm B mm C mm
ISI 111202EB 99 37 26
ISI 111203EB 101 37 26
ISI 111204EB 108 37 30
