Female coupler

1
2181_USI_061100
2181_USI_061100
Net weight (kg)
0,102
Flow rate
29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI)
ID passage
1/4"
Max. output pressure
174.00
Profile
AUTOMOTIVE
Female thread
G1/4
Temperature
5.00°F to 158.00°F

Description

Reference
Net weight (kg)
Flow rate
ID passage
Max. output pressure
Profile
Female thread
Temperature
USI 061101
USI 061102
USI 061103
USI 061201
USI 061202
USI 061203

Dimensions

USI 061200
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
USI 061101
2.8
1.18
0.79
USI 061102
2.95
1.18
0.79
USI 061103
3.23
1.18
0.91
USI 061201
2.8
1.18
0.79
USI 061202
2.95
1.18
0.79
USI 061203
3.23
1.18
0.91

Description

Reference Net weight (kg) Flow rate ID passage Max. output pressure Profile Female thread Temperature 3D
USI 061101 0,102 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE G1/4 5.00°F to 158.00°F 3D
USI 061102 0,1 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE G3/8 5.00°F to 158.00°F 3D
USI 061103 0,12 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE G1/2 5.00°F to 158.00°F 3D
USI 061201 0,102 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE NPT1/4 5.00°F to 158.00°F
USI 061202 0,1 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE NPT3/8 5.00°F to 158.00°F
USI 061203 0,109 29.00 CFM (P = 87.00 PSI ,ΔP = 8.69 PSI) 1/4" 174.00 AUTOMOTIVE NPT1/2 5.00°F to 158.00°F

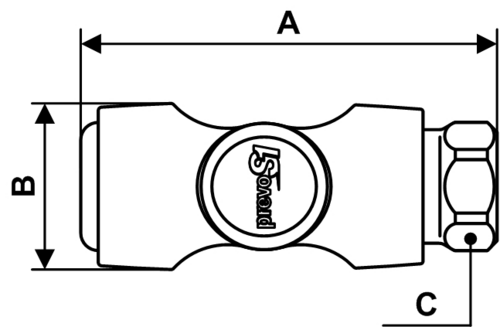

Dimensions

Reference A inch B inch C inch
USI 061101 2.8 1.18 0.79
USI 061102 2.95 1.18 0.79
USI 061103 3.23 1.18 0.91
USI 061201 2.8 1.18 0.79
USI 061202 2.95 1.18 0.79
USI 061203 3.23 1.18 0.91
USI 061200
