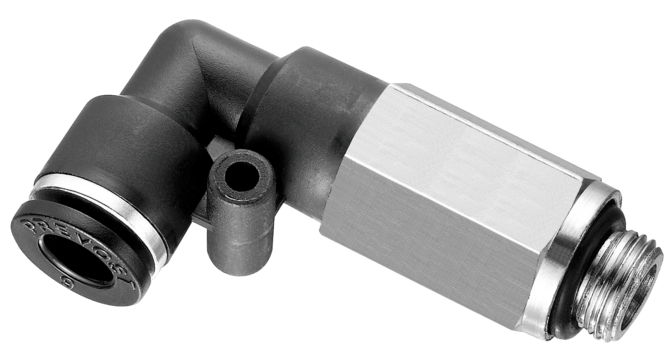

Extended male elbow - Fractional inch tube to 10-32 UNF - RPC LG
Extended male elbow - Fractional inch tube to 10-32 UNF - RPC LG
Ø ext. (in)
1/8"
Male thread
UNF 10-32
For pipe OD =
1/8 inch
Female thread
UNF 10-32
Description
Reference
Ø ext. (in)
Male thread
For pipe OD =
Female thread
Max. output pressure
Temperature
RPC LG1826
RPC LG5326
Dimensions
Reference
A (inch)
B (inch)
C (inch)
D (inch)
E (inch)
RPC LG1826
RPC LG5326
1.4
0.16
1675.28
0.69
Description
| Reference | Ø ext. (in) | Male thread | For pipe OD = | Female thread | Max. output pressure | Temperature | 3D |
|---|---|---|---|---|---|---|---|
| RPC LG1826 | 1/8" | UNF 10-32 | 1/8 inch | UNF 10-32 | |||
| RPC LG5326 | 5/32" | UNF 10-32 | 5/32 inch | UNF 10-32 | 150 | 32°F to 140°F |
Dimensions
| Reference | A inch | B inch | C inch | D inch |
|---|---|---|---|---|
| RPC LG1826 | ||||
| RPC LG5326 | 1.4 | 0.16 | 1675.28 | 0.69 |
